unijohab2html.c File Reference

Display overalpped Hangul letter combinations in a grid. More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "hangul.h"

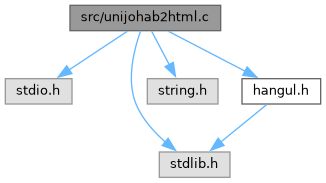

Include dependency graph for unijohab2html.c:

Go to the source code of this file.

Macros

#define MAXFILENAME   1024

#define START_JUNG   0
 Vowel index of first vowel with which to begin.

#define RED   0xCC0000
 Color code for slightly unsaturated HTML red.

#define GREEN   0x00CC00
 Color code for slightly unsaturated HTML green.

#define BLUE   0x0000CC
 Color code for slightly unsaturated HTML blue.

#define BLACK   0x000000
 Color code for HTML black.

#define WHITE   0xFFFFFF
 Color code for HTML white.


Functions

int main (int argc, char *argv[])
 The main function.

void parse_args (int argc, char *argv[], int *inindex, int *outindex, int *modern_only)
 Parse command line arguments.


Detailed Description

Display overalpped Hangul letter combinations in a grid.

This displays overlapped letters that form Unicode Hangul Syllables combinations, as a tool to determine bounding boxes for all combinations. It works with both modern and archaic Hangul letters.

Input is a Unifont .hex file such as the "hangul-base.hex" file that is part of the Unifont package. Glyphs are all processed as being 16 pixels wide and 16 pixels tall.

Output is an HTML file containing 16 by 16 pixel grids shwoing overlaps in table format, arranged by variation of the initial consonant (choseong).

Initial consonants (choseong) have 6 variations. In general, the first three are for combining with vowels (jungseong) that are vertical, horizontal, or vertical and horizontal, respectively; the second set of three variations are for combinations with a final consonant.

The output HTML file can be viewed in a web browser.

Author
Paul Hardy
Copyright
Copyright © 2023 Paul Hardy

Definition in file unijohab2html.c.

Macro Definition Documentation

◆ BLACK

#define BLACK   0x000000

Color code for HTML black.

Definition at line 62 of file unijohab2html.c.

◆ BLUE

#define BLUE   0x0000CC

Color code for slightly unsaturated HTML blue.

Definition at line 61 of file unijohab2html.c.

◆ GREEN

#define GREEN   0x00CC00

Color code for slightly unsaturated HTML green.

Definition at line 60 of file unijohab2html.c.

◆ MAXFILENAME

#define MAXFILENAME   1024

Definition at line 52 of file unijohab2html.c.

◆ RED

#define RED   0xCC0000

Color code for slightly unsaturated HTML red.

Definition at line 59 of file unijohab2html.c.

◆ START_JUNG

#define START_JUNG   0

Vowel index of first vowel with which to begin.

Definition at line 54 of file unijohab2html.c.

◆ WHITE

#define WHITE   0xFFFFFF

Color code for HTML white.

Definition at line 63 of file unijohab2html.c.

Function Documentation

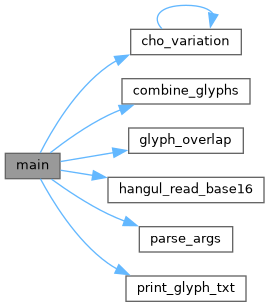

◆ main()

int main ( int  argc,
char *  argv[]
)

The main function.

Definition at line 70 of file unijohab2html.c.

70 {
71 int i, j; /* loop variables */
72 unsigned codept;
73 unsigned max_codept;
74 int modern_only = 0; /* To just use modern Hangul */
75 int group, consonant1, vowel, consonant2;
76 int vowel_variation;
77 unsigned glyph[MAX_GLYPHS][16];
78 unsigned tmp_glyph [16]; /* To build one combined glyph at a time. */
79 unsigned mask;
80 unsigned overlapped; /* To find overlaps */
81 int ancient_choseong; /* Flag when within ancient choseong range. */
82
83 /*
84 16x16 pixel grid for each Choseong group, for:
85
86 Group 0 to Group 5 with no Jongseong
87 Group 3 to Group 5 with Jongseong except Nieun
88 Group 3 to Group 5 with Jongseong Nieun
89
90 12 grids total.
91
92 Each grid cell will hold a 32-bit HTML RGB color.
93 */
94 unsigned grid[12][16][16];
95
96 /*
97 Matrices to detect and report overlaps. Identify vowel
98 variations where an overlap occurred. For most vowel
99 variations, there will be no overlap. Then go through
100 choseong, and then jongseong to find the overlapping
101 combinations. This saves storage space as an alternative
102 to storing large 2- or 3-dimensional overlap matrices.
103 */
104 // jungcho: Jungseong overlap with Choseong
105 unsigned jungcho [TOTAL_JUNG * JUNG_VARIATIONS];
106 // jongjung: Jongseong overlap with Jungseong -- for future expansion
107 // unsigned jongjung [TOTAL_JUNG * JUNG_VARIATIONS];
108
109 int glyphs_overlap; /* If glyph pair being considered overlap. */
110 int cho_overlaps = 0; /* Number of choseong+vowel overlaps. */
111 // int jongjung_overlaps = 0; /* Number of vowel+jongseong overlaps. */
112
113 int inindex = 0;
114 int outindex = 0;
115 FILE *infp, *outfp; /* Input and output file pointers. */
116
117 void parse_args (int argc, char *argv[], int *inindex, int *outindex,
118 int *modern_only);
119 int cho_variation (int cho, int jung, int jong);
120 unsigned hangul_read_base16 (FILE *infp, unsigned glyph[][16]);
121 int glyph_overlap (unsigned *glyph1, unsigned *glyph2);
122
123 void combine_glyphs (unsigned *glyph1, unsigned *glyph2,
124 unsigned *combined_glyph);
125 void print_glyph_txt (FILE *fp, unsigned codept, unsigned *this_glyph);
126
127
128 /*
129 Parse command line arguments to open input & output files, if given.
130 */
131 if (argc > 1) {
132 parse_args (argc, argv, &inindex, &outindex, &modern_only);
133 }
134
135 if (inindex == 0) {
136 infp = stdin;
137 }
138 else {
139 infp = fopen (argv[inindex], "r");
140 if (infp == NULL) {
141 fprintf (stderr, "\n*** ERROR: Cannot open %s for input.\n\n",
142 argv[inindex]);
143 exit (EXIT_FAILURE);
144 }
145 }
146 if (outindex == 0) {
147 outfp = stdout;
148 }
149 else {
150 outfp = fopen (argv[outindex], "w");
151 if (outfp == NULL) {
152 fprintf (stderr, "\n*** ERROR: Cannot open %s for output.\n\n",
153 argv[outindex]);
154 exit (EXIT_FAILURE);
155 }
156 }
157
158 /*
159 Initialize glyph array to all zeroes.
160 */
161 for (codept = 0; codept < MAX_GLYPHS; codept++) {
162 for (i = 0; i < 16; i++) glyph[codept][i] = 0x0000;
163 }
164
165 /*
166 Initialize overlap matrices to all zeroes.
167 */
168 for (i = 0; i < TOTAL_JUNG * JUNG_VARIATIONS; i++) {
169 jungcho [i] = 0;
170 }
171 // jongjung is reserved for expansion.
172 // for (i = 0; i < TOTAL_JONG * JONG_VARIATIONS; i++) {
173 // jongjung [i] = 0;
174 // }
175
176 /*
177 Read Hangul base glyph file.
178 */
179 max_codept = hangul_read_base16 (infp, glyph);
180 if (max_codept > 0x8FF) {
181 fprintf (stderr, "\nWARNING: Hangul glyph range exceeds PUA space.\n\n");
182 }
183
184 /*
185 If only examining modern Hangul, fill the ancient glyphs
186 with blanks to guarantee they won't overlap. This is
187 not as efficient as ending loops sooner, but is easier
188 to verify for correctness.
189 */
190 if (modern_only) {
191 for (i = 0x0073; i < JUNG_HEX; i++) {
192 for (j = 0; j < 16; j++) glyph[i][j] = 0x0000;
193 }
194 for (i = 0x027A; i < JONG_HEX; i++) {
195 for (j = 0; j < 16; j++) glyph[i][j] = 0x0000;
196 }
197 for (i = 0x032B; i < 0x0400; i++) {
198 for (j = 0; j < 16; j++) glyph[i][j] = 0x0000;
199 }
200 }
201
202 /*
203 Initialize grids to all black (no color) for each of
204 the 12 Choseong groups.
205 */
206 for (group = 0; group < 12; group++) {
207 for (i = 0; i < 16; i++) {
208 for (j = 0; j < 16; j++) {
209 grid[group][i][j] = BLACK; /* No color at first */
210 }
211 }
212 }
213
214 /*
215 Superimpose all Choseong glyphs according to group.
216 Each grid spot with choseong will be blue.
217 */
218 for (group = 0; group < 6; group++) {
219 for (consonant1 = CHO_HEX + group;
220 consonant1 < CHO_HEX +
221 CHO_VARIATIONS * TOTAL_CHO;
222 consonant1 += CHO_VARIATIONS) {
223 for (i = 0; i < 16; i++) { /* For each glyph row */
224 mask = 0x8000;
225 for (j = 0; j < 16; j++) {
226 if (glyph[consonant1][i] & mask) grid[group][i][j] |= BLUE;
227 mask >>= 1; /* Get next bit in glyph row */
228 }
229 }
230 }
231 }
232
233 /*
234 Fill with Choseong (initial consonant) to prepare
235 for groups 3-5 with jongseong except niuen (group+3),
236 then for groups 3-5 with jongseong nieun (group+6).
237 */
238 for (group = 3; group < 6; group++) {
239 for (i = 0; i < 16; i++) {
240 for (j = 0; j < 16; j++) {
241 grid[group + 6][i][j] = grid[group + 3][i][j]
242 = grid[group][i][j];
243 }
244 }
245 }
246
247 /*
248 For each Jungseong, superimpose first variation on
249 appropriate Choseong group for grids 0 to 5.
250 */
251 for (vowel = START_JUNG; vowel < TOTAL_JUNG; vowel++) {
252 group = cho_variation (-1, vowel, -1);
253 glyphs_overlap = 0; /* Assume the 2 glyphs do not overlap. */
254
255 for (i = 0; i < 16; i++) { /* For each glyph row */
256 mask = 0x8000;
257 for (j = 0; j < 16; j++) {
258 if (glyph[JUNG_HEX + JUNG_VARIATIONS * vowel][i] & mask) {
259 /*
260 If there was already blue in this grid cell,
261 mark this vowel variation as having overlap
262 with choseong (initial consonant) letter(s).
263 */
264 if (grid[group][i][j] & BLUE) glyphs_overlap = 1;
265
266 /* Add green to grid cell color. */
267 grid[group][i][j] |= GREEN;
268 }
269 mask >>= 1; /* Mask for next bit in glyph row */
270 } /* for j */
271 } /* for i */
272 if (glyphs_overlap) {
273 jungcho [JUNG_VARIATIONS * vowel] = 1;
274 cho_overlaps++;
275 }
276 } /* for each vowel */
277
278 /*
279 For each Jungseong, superimpose second variation on
280 appropriate Choseong group for grids 6 to 8.
281 */
282 for (vowel = START_JUNG; vowel < TOTAL_JUNG; vowel++) {
283 /*
284 The second vowel variation is for combination with
285 a final consonant (Jongseong), with initial consonant
286 (Choseong) variations (or "groups") 3 to 5. Thus,
287 if the vowel type returns an initial Choseong group
288 of 0 to 2, add 3 to it.
289 */
290 group = cho_variation (-1, vowel, -1);
291 /*
292 Groups 0 to 2 don't use second vowel variation,
293 so increment if group is below 2.
294 */
295 if (group < 3) group += 3;
296 glyphs_overlap = 0; /* Assume the 2 glyphs do not overlap. */
297
298 for (i = 0; i < 16; i++) { /* For each glyph row */
299 mask = 0x8000; /* Start mask at leftmost glyph bit */
300 for (j = 0; j < 16; j++) { /* For each column in this row */
301 /* "+ 1" is to get each vowel's second variation */
302 if (glyph [JUNG_HEX +
303 JUNG_VARIATIONS * vowel + 1][i] & mask) {
304 /* If this cell has blue already, mark as overlapped. */
305 if (grid [group + 3][i][j] & BLUE) glyphs_overlap = 1;
306
307 /* Superimpose green on current cell color. */
308 grid [group + 3][i][j] |= GREEN;
309 }
310 mask >>= 1; /* Get next bit in glyph row */
311 } /* for j */
312 } /* for i */
313 if (glyphs_overlap) {
314 jungcho [JUNG_VARIATIONS * vowel + 1] = 1;
315 cho_overlaps++;
316 }
317 } /* for each vowel */
318
319 /*
320 For each Jungseong, superimpose third variation on
321 appropriate Choseong group for grids 9 to 11 for
322 final consonant (Jongseong) of Nieun.
323 */
324 for (vowel = START_JUNG; vowel < TOTAL_JUNG; vowel++) {
325 group = cho_variation (-1, vowel, -1);
326 if (group < 3) group += 3;
327 glyphs_overlap = 0; /* Assume the 2 glyphs do not overlap. */
328
329 for (i = 0; i < 16; i++) { /* For each glyph row */
330 mask = 0x8000;
331 for (j = 0; j < 16; j++) {
332 if (glyph[JUNG_HEX +
333 JUNG_VARIATIONS * vowel + 2][i] & mask) {
334 /* If this cell has blue already, mark as overlapped. */
335 if (grid[group + 6][i][j] & BLUE) glyphs_overlap = 1;
336
337 grid[group + 6][i][j] |= GREEN;
338 }
339 mask >>= 1; /* Get next bit in glyph row */
340 } /* for j */
341 } /* for i */
342 if (glyphs_overlap) {
343 jungcho [JUNG_VARIATIONS * vowel + 2] = 1;
344 cho_overlaps++;
345 }
346 } /* for each vowel */
347
348
349 /*
350 Superimpose all final consonants except nieun for grids 6 to 8.
351 */
352 for (consonant2 = 0; consonant2 < TOTAL_JONG; consonant2++) {
353 /*
354 Skip over Jongseong Nieun, because it is covered in
355 grids 9 to 11 after this loop.
356 */
357 if (consonant2 == 3) consonant2++;
358
359 glyphs_overlap = 0; /* Assume the 2 glyphs do not overlap. */
360 for (i = 0; i < 16; i++) { /* For each glyph row */
361 mask = 0x8000;
362 for (j = 0; j < 16; j++) {
363 if (glyph [JONG_HEX +
364 JONG_VARIATIONS * consonant2][i] & mask) {
365 if (grid[6][i][j] & GREEN ||
366 grid[7][i][j] & GREEN ||
367 grid[8][i][j] & GREEN) glyphs_overlap = 1;
368
369 grid[6][i][j] |= RED;
370 grid[7][i][j] |= RED;
371 grid[8][i][j] |= RED;
372 }
373 mask >>= 1; /* Get next bit in glyph row */
374 } /* for j */
375 } /* for i */
376 // jongjung is for expansion
377 // if (glyphs_overlap) {
378 // jongjung [JONG_VARIATIONS * consonant2] = 1;
379 // jongjung_overlaps++;
380 // }
381 } /* for each final consonant except nieun */
382
383 /*
384 Superimpose final consonant 3 (Jongseong Nieun) on
385 groups 9 to 11.
386 */
387 codept = JONG_HEX + 3 * JONG_VARIATIONS;
388
389 for (i = 0; i < 16; i++) { /* For each glyph row */
390 mask = 0x8000;
391 for (j = 0; j < 16; j++) {
392 if (glyph[codept][i] & mask) {
393 grid[ 9][i][j] |= RED;
394 grid[10][i][j] |= RED;
395 grid[11][i][j] |= RED;
396 }
397 mask >>= 1; /* Get next bit in glyph row */
398 }
399 }
400
401
402 /*
403 Turn the black (uncolored) cells into white for better
404 visibility of grid when displayed.
405 */
406 for (group = 0; group < 12; group++) {
407 for (i = 0; i < 16; i++) {
408 for (j = 0; j < 16; j++) {
409 if (grid[group][i][j] == BLACK) grid[group][i][j] = WHITE;
410 }
411 }
412 }
413
414
415 /*
416 Generate HTML output.
417 */
418 fprintf (outfp, "<html>\n");
419 fprintf (outfp, "<head>\n");
420 fprintf (outfp, " <title>Johab 6/3/1 Overlaps</title>\n");
421 fprintf (outfp, "</head>\n");
422 fprintf (outfp, "<body bgcolor=\"#FFFFCC\">\n");
423
424 fprintf (outfp, "<center>\n");
425 fprintf (outfp, " <h1>Unifont Hangul Jamo Syllable Components</h1>\n");
426 fprintf (outfp, " <h2>Johab 6/3/1 Overlap</h2><br><br>\n");
427
428 /* Print the color code key for the table. */
429 fprintf (outfp, " <table border=\"1\" cellpadding=\"10\">\n");
430 fprintf (outfp, " <tr><th colspan=\"2\" align=\"center\" bgcolor=\"#FFCC80\">");
431 fprintf (outfp, "<font size=\"+1\">Key</font></th></tr>\n");
432 fprintf (outfp, " <tr>\n");
433 fprintf (outfp, " <th align=\"center\" bgcolor=\"#FFFF80\">Color</th>\n");
434 fprintf (outfp, " <th align=\"center\" bgcolor=\"#FFFF80\">Letter(s)</th>\n");
435 fprintf (outfp, " </tr>\n");
436
437 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", BLUE);
438 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
439 fprintf (outfp, "<td>Choseong (Initial Consonant)</td></tr>\n");
440
441 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", GREEN);
442 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
443 fprintf (outfp, "<td>Jungseong (Medial Vowel/Diphthong)</td></tr>\n");
444
445 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", RED);
446 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
447 fprintf (outfp, "<td>Jongseong (Final Consonant)</td></tr>\n");
448
449 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", BLUE | GREEN);
450 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
451 fprintf (outfp, "<td>Choseong + Jungseong Overlap</td></tr>\n");
452
453 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", GREEN | RED);
454 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
455 fprintf (outfp, "<td>Jungseong + Jongseong Overlap</td></tr>\n");
456
457 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", RED | BLUE);
458 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
459 fprintf (outfp, "<td>Choseong + Jongseong Overlap</td></tr>\n");
460
461 fprintf (outfp, " <tr><td bgcolor=\"#%06X\">", RED | GREEN | BLUE);
462 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>");
463 fprintf (outfp, "<td>Choseong + Jungseong + Jongseong Overlap</td></tr>\n");
464
465 fprintf (outfp, " </table>\n");
466 fprintf (outfp, " <br><br>\n");
467
468
469 for (group = 0; group < 12; group++) {
470 /* Arrange tables 3 across, 3 down. */
471 if ((group % 3) == 0) {
472 fprintf (outfp, " <table border=\"0\" cellpadding=\"10\">\n");
473 fprintf (outfp, " <tr>\n");
474 }
475
476 fprintf (outfp, " <td>\n");
477 fprintf (outfp, " <table border=\"3\" cellpadding=\"2\">\n");
478 fprintf (outfp, " <tr><th colspan=\"16\" bgcolor=\"#FFFF80\">");
479 fprintf (outfp, "Choseong Group %d, %s %s</th></tr>\n",
480 group < 6 ? group : (group > 8 ? group - 6 : group - 3),
481 group < 6 ? (group < 3 ? "No" : "Without") : "With",
482 group < 9 ? "Jongseong" : "Nieun");
483
484 for (i = 0; i < 16; i++) {
485 fprintf (outfp, " <tr>\n");
486 for (j = 0; j < 16; j++) {
487 fprintf (outfp, " <td bgcolor=\"#%06X\">",
488 grid[group][i][j]);
489 fprintf (outfp, "&nbsp;&nbsp;&nbsp;&nbsp;</td>\n");
490 }
491 fprintf (outfp, " </tr>\n");
492 }
493
494 fprintf (outfp, " </td>\n");
495 fprintf (outfp, " </tr>\n");
496 fprintf (outfp, " </table>\n");
497 fprintf (outfp, " </td>\n");
498
499 if ((group % 3) == 2) {
500 fprintf (outfp, " </tr>\n");
501 fprintf (outfp, " </table>\n </br>\n");
502 }
503 }
504
505 /* Wrap up HTML table output. */
506 fprintf (outfp, "</center>\n");
507
508 /*
509 Print overlapping initial consonant + vowel combinations.
510 */
511 fprintf (outfp, "<h2>%d Vowel Overlaps with Initial Consonants Found</h2>",
512 cho_overlaps);
513 fprintf (outfp, "<font size=\"+1\"><pre>\n");
514
515 for (i = JUNG_HEX;
516 i < JUNG_HEX + TOTAL_JUNG * JUNG_VARIATIONS;
517 i++) {
518 /*
519 If this vowel variation (Jungseong) had overlaps
520 with one or more initial consonants (Choseong),
521 find and print them.
522 */
523 if (jungcho [i - JUNG_HEX]) {
524 ancient_choseong = 0; /* Not within ancient choseong range yet. */
525 fprintf (outfp, "<font color=\"#0000FF\"><b>");
526 if (i >= JUNG_ANCIENT_HEX) {
527 if (i >= JUNG_EXTB_HEX) fprintf (outfp, "Extended-B ");
528 fprintf (outfp, "Ancient ");
529 }
530 fprintf (outfp, "Vowel at 0x%04X and&hellip;</b>", i + PUA_START);
531 fprintf (outfp, "</font>\n\n");
532
533 /*
534 Get current vowel number, 0 to (TOTAL_JUNG - 1), and
535 current vowel variation, 0 or 1, or 2 for final nieun.
536 */
537 vowel = (i - JUNG_HEX) / JUNG_VARIATIONS;
538 vowel_variation = (i - JUNG_HEX) % JUNG_VARIATIONS;
539
540 /* Get first Choseong group for this vowel, 0 to 5. */
541 group = cho_variation (-1, vowel, -1);
542
543 /*
544 If this vowel variation is used with a final consonant
545 (Jongseong) and the default initial consonant (Choseong)
546 group for this vowel is < 3, add 3 to current Chosenong
547 group.
548 */
549 if (vowel_variation > 0 && group < 3) group += 3;
550
551 for (consonant1 = 0; consonant1 < TOTAL_CHO; consonant1++) {
552 overlapped = glyph_overlap (glyph [i],
553 glyph [consonant1 * CHO_VARIATIONS
554 + CHO_HEX + group]);
555
556 /*
557 If we just entered ancient choseong range, flag it.
558 */
559 if (overlapped && consonant1 >= 19 && ancient_choseong == 0) {
560 fprintf (outfp, "<font color=\"#0000FF\"><b>");
561 fprintf (outfp, "&hellip;Ancient Choseong&hellip;</b></font>\n");
562 ancient_choseong = 1;
563 }
564 /*
565 If overlapping choseong found, print combined glyph.
566 */
567 if (overlapped != 0) {
568
569 combine_glyphs (glyph [i],
570 glyph [consonant1 * CHO_VARIATIONS
571 + CHO_HEX + group],
572 tmp_glyph);
573
574 print_glyph_txt (outfp,
575 PUA_START +
576 consonant1 * CHO_VARIATIONS +
577 CHO_HEX + group,
578 tmp_glyph);
579
580 } /* If overlapping pixels found. */
581 } /* For each initial consonant (Choseong) */
582 } /* Find the initial consonant that overlapped this vowel variation. */
583 } /* For each variation of each vowel (Jungseong) */
584
585 fputc ('\n', outfp);
586
587 fprintf (outfp, "</pre></font>\n");
588 fprintf (outfp, "</body>\n");
589 fprintf (outfp, "</html>\n");
590
591 fclose (infp);
592 fclose (outfp);
593
594
595 exit (EXIT_SUCCESS);
596}
CHO_VARIATIONS
#define CHO_VARIATIONS
6 choseong variations
Definition: hangul.h:88
JONG_VARIATIONS
#define JONG_VARIATIONS
1 jongseong variation
Definition: hangul.h:90
print_glyph_txt
void print_glyph_txt(FILE *fp, unsigned codept, unsigned *this_glyph)
Print one glyph in Unifont hexdraw plain text style.
Definition: unihangul-support.c:656
JUNG_HEX
#define JUNG_HEX
Location of first jungseong (will be 0x2FB)
Definition: hangul.h:108
glyph_overlap
int glyph_overlap(unsigned *glyph1, unsigned *glyph2)
See if two glyphs overlap.
Definition: unihangul-support.c:613
JUNG_ANCIENT_HEX
#define JUNG_ANCIENT_HEX
Location of first ancient jungseong.
Definition: hangul.h:111
JUNG_VARIATIONS
#define JUNG_VARIATIONS
3 jungseong variations
Definition: hangul.h:89
combine_glyphs
void combine_glyphs(unsigned *glyph1, unsigned *glyph2, unsigned *combined_glyph)
Combine two glyphs into one glyph.
Definition: unihangul-support.c:637
CHO_HEX
#define CHO_HEX
Location of first choseong (location 0x0000 is a blank glyph)
Definition: hangul.h:96
cho_variation
int cho_variation(int choseong, int jungseong, int jongseong)
Return the Johab 6/3/1 choseong variation for a syllable.
Definition: unihangul-support.c:350
JUNG_EXTB_HEX
#define JUNG_EXTB_HEX
U+D7B0 Extended-B jungseong.
Definition: hangul.h:114
JONG_HEX
#define JONG_HEX
Location of first jongseong (will be 0x421)
Definition: hangul.h:120
hangul_read_base16
unsigned hangul_read_base16(FILE *infp, unsigned base[][16])
Read hangul-base.hex file into a unsigned array.
Definition: unihangul-support.c:116
START_JUNG
#define START_JUNG
Vowel index of first vowel with which to begin.
Definition: unijohab2html.c:54
BLUE
#define BLUE
Color code for slightly unsaturated HTML blue.
Definition: unijohab2html.c:61
BLACK
#define BLACK
Color code for HTML black.
Definition: unijohab2html.c:62
WHITE
#define WHITE
Color code for HTML white.
Definition: unijohab2html.c:63
RED
#define RED
Color code for slightly unsaturated HTML red.
Definition: unijohab2html.c:59
GREEN
#define GREEN
Color code for slightly unsaturated HTML green.
Definition: unijohab2html.c:60
parse_args
void parse_args(int argc, char *argv[], int *inindex, int *outindex, int *modern_only)
Parse command line arguments.
Definition: unijohab2html.c:608
Here is the call graph for this function:

◆ parse_args()

void parse_args ( int  argc,
char *  argv[],
int *  inindex,
int *  outindex,
int *  modern_only
)

Parse command line arguments.

Parameters
[in]argcThe argc parameter to the main function.
[in]argvThe argv command line arguments to the main function.
[in,out]infileThe input filename; defaults to NULL.
[in,out]outfileThe output filename; defaults to NULL.

Definition at line 608 of file unijohab2html.c.

609 {
610 int arg_count; /* Current index into argv[]. */
611
612 int strncmp (const char *s1, const char *s2, size_t n);
613
614
615 arg_count = 1;
616
617 while (arg_count < argc) {
618 /* If input file is specified, open it for read access. */
619 if (strncmp (argv [arg_count], "-i", 2) == 0) {
620 arg_count++;
621 if (arg_count < argc) {
622 *inindex = arg_count;
623 }
624 }
625 /* If only modern Hangul is desired, set modern_only flag. */
626 else if (strncmp (argv [arg_count], "-m", 2) == 0 ||
627 strncmp (argv [arg_count], "--modern", 8) == 0) {
628 *modern_only = 1;
629 }
630 /* If output file is specified, open it for write access. */
631 else if (strncmp (argv [arg_count], "-o", 2) == 0) {
632 arg_count++;
633 if (arg_count < argc) {
634 *outindex = arg_count;
635 }
636 }
637 /* If help is requested, print help message and exit. */
638 else if (strncmp (argv [arg_count], "-h", 2) == 0 ||
639 strncmp (argv [arg_count], "--help", 6) == 0) {
640 printf ("\nunijohab2html [options]\n\n");
641 printf (" Generates an HTML page of overlapping Hangul letters from an input\n");
642 printf (" Unifont .hex file encoded in Johab 6/3/1 format.\n\n");
643
644 printf (" Option Parameters Function\n");
645 printf (" ------ ---------- --------\n");
646 printf (" -h, --help Print this message and exit.\n\n");
647 printf (" -i input_file Unifont hangul-base.hex formatted input file.\n\n");
648 printf (" -o output_file HTML output file showing overlapping letters.\n\n");
649 printf (" -m, --modern Only examine modern Hangul letters.\n\n");
650 printf (" Example:\n\n");
651 printf (" unijohab2html -i hangul-base.hex -o hangul-syllables.html\n\n");
652
653 exit (EXIT_SUCCESS);
654 }
655
656 arg_count++;
657 }
658
659 return;
660}
Here is the caller graph for this function:
