hex2otf.c File Reference

hex2otf - Convert GNU Unifont .hex file to OpenType font More...

#include <assert.h>
#include <ctype.h>
#include <inttypes.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "hex2otf.h"

Include dependency graph for hex2otf.c:

Go to the source code of this file.

Data Structures
struct	Buffer
	Generic data structure for a linked list of buffer elements. More...
struct	Glyph
	Data structure to hold data for one bitmap glyph. More...
struct	Font
	Data structure to hold information for one font. More...
struct	Table
	Data structure for an OpenType table. More...
struct	TableRecord
	Data structure for data associated with one OpenType table. More...
struct	Options
	Data structure to hold options for OpenType font output. More...

Macros
#define	VERSION   "1.0.1"
	Program version, for "--version" option.
#define	U16MAX   0xffff
	Maximum UTF-16 code point value.
#define	U32MAX   0xffffffff
	Maximum UTF-32 code point value.
#define	PRI_CP   "U+%.4"PRIXFAST32
	Format string to print Unicode code point.
#define	static_assert(a, b)   (assert(a))
	If "a" is true, return string "b".
#define	BX(shift, x)   ((uintmax_t)(!!(x)) << (shift))
	Truncate & shift word.
#define	B0(shift)   BX((shift), 0)
	Clear a given bit in a word.
#define	B1(shift)   BX((shift), 1)
	Set a given bit in a word.
#define	GLYPH_MAX_WIDTH   16
	Maximum glyph width, in pixels.
#define	GLYPH_HEIGHT   16
	Maximum glyph height, in pixels.
#define	GLYPH_MAX_BYTE_COUNT   (GLYPH_HEIGHT * GLYPH_MAX_WIDTH / 8)
	Number of bytes to represent one bitmap glyph as a binary array.
#define	DESCENDER   2
	Count of pixels below baseline.
#define	ASCENDER   (GLYPH_HEIGHT - DESCENDER)
	Count of pixels above baseline.
#define	FUPEM   64
	Font units per em.
#define	MAX_GLYPHS   65536
	An OpenType font has at most 65536 glyphs.
#define	MAX_NAME_IDS   256
	Name IDs 0-255 are used for standard names.
#define	FU(x)   ((x) * FUPEM / GLYPH_HEIGHT)
	Convert pixels to font units.
#define	PW(x)   ((x) / (GLYPH_HEIGHT / 8))
	Convert glyph byte count to pixel width.
#define	defineStore(name, type)
	Temporary define to look up an element in an array of given type.
#define	addByte(shift)
#define	getRowBit(rows, x, y)   ((rows)[(y)] & x0 >> (x))
#define	flipRowBit(rows, x, y)   ((rows)[(y)] ^= x0 >> (x))
#define	stringCount   (sizeof strings / sizeof *strings)
#define	cacheCFF32(buf, x)   (cacheU8 ((buf), 29), cacheU32 ((buf), (x)))

Typedefs
typedef unsigned char	byte
	Definition of "byte" type as an unsigned char.
typedef int_least8_t	pixels_t
	This type must be able to represent max(GLYPH_MAX_WIDTH, GLYPH_HEIGHT).
typedef struct Buffer	Buffer
	Generic data structure for a linked list of buffer elements.
typedef const char *	NameStrings[MAX_NAME_IDS]
	Array of OpenType names indexed directly by Name IDs.
typedef struct Glyph	Glyph
	Data structure to hold data for one bitmap glyph.
typedef struct Font	Font
	Data structure to hold information for one font.
typedef struct Table	Table
	Data structure for an OpenType table.
typedef struct Options	Options
	Data structure to hold options for OpenType font output.

Enumerations
enum	LocaFormat { LOCA_OFFSET16 = 0 , LOCA_OFFSET32 = 1 }
	Index to Location ("loca") offset information. More...
enum	ContourOp { OP_CLOSE , OP_POINT }
	Specify the current contour drawing operation. More...
enum	FillSide { FILL_LEFT , FILL_RIGHT }
	Fill to the left side (CFF) or right side (TrueType) of a contour. More...

Functions
void	fail (const char *reason,...)
	Print an error message on stderr, then exit.
void	initBuffers (size_t count)
	Initialize an array of buffer pointers to all zeroes.
void	cleanBuffers ()
	Free all allocated buffer pointers.

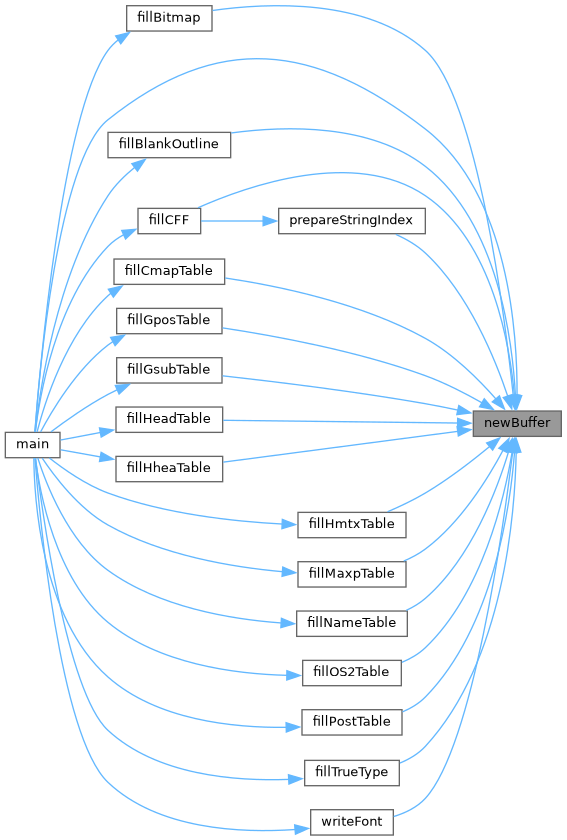

Buffer *	newBuffer (size_t initialCapacity)
	Create a new buffer.

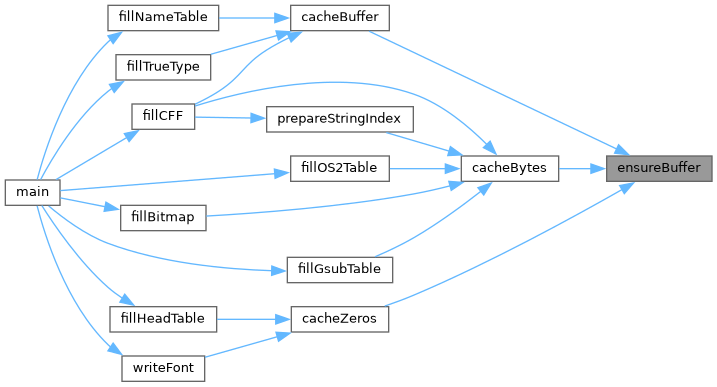

void	ensureBuffer (Buffer *buf, size_t needed)
	Ensure that the buffer has at least the specified minimum size.

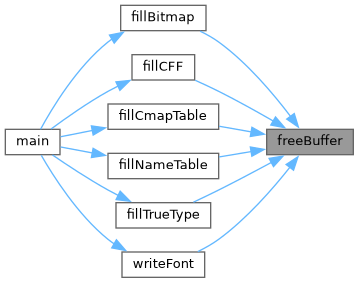

void	freeBuffer (Buffer *buf)
	Free the memory previously allocated for a buffer.
	defineStore (storeU8, uint_least8_t)
void	cacheU8 (Buffer *buf, uint_fast8_t value)
	Append one unsigned byte to the end of a byte array.
void	cacheU16 (Buffer *buf, uint_fast16_t value)
	Append two unsigned bytes to the end of a byte array.
void	cacheU32 (Buffer *buf, uint_fast32_t value)
	Append four unsigned bytes to the end of a byte array.
void	cacheCFFOperand (Buffer *buf, int_fast32_t value)
	Cache charstring number encoding in a CFF buffer.
void	cacheZeros (Buffer *buf, size_t count)
	Append 1 to 4 bytes of zeroes to a buffer, for padding.

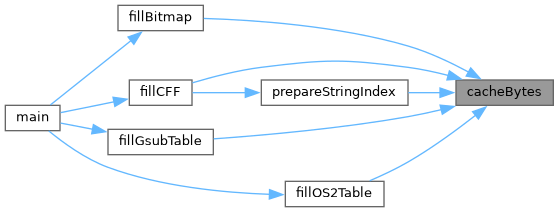

void	cacheBytes (Buffer *restrict buf, const void *restrict src, size_t count)
	Append a string of bytes to a buffer.
void	cacheBuffer (Buffer *restrict bufDest, const Buffer *restrict bufSrc)
	Append bytes of a table to a byte buffer.

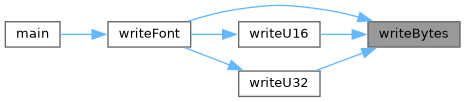

void	writeBytes (const byte bytes[], size_t count, FILE *file)
	Write an array of bytes to an output file.
void	writeU16 (uint_fast16_t value, FILE *file)
	Write an unsigned 16-bit value to an output file.
void	writeU32 (uint_fast32_t value, FILE *file)
	Write an unsigned 32-bit value to an output file.

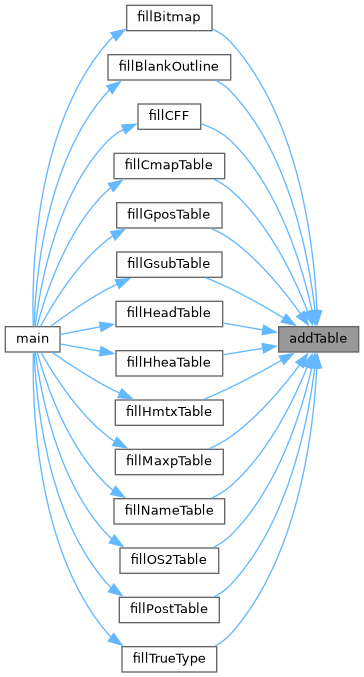

void	addTable (Font *font, const char tag[static 4], Buffer *content)
	Add a TrueType or OpenType table to the font.
void	organizeTables (Font *font, bool isCFF)
	Sort tables according to OpenType recommendations.
int	byTableTag (const void *a, const void *b)
	Compare tables by 4-byte unsigned table tag value.

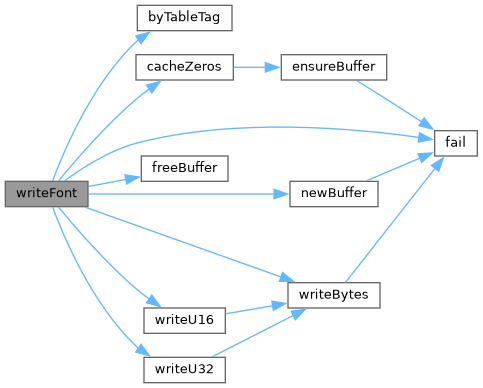

void	writeFont (Font *font, bool isCFF, const char *fileName)
	Write OpenType font to output file.
bool	readCodePoint (uint_fast32_t *codePoint, const char *fileName, FILE *file)
	Read up to 6 hexadecimal digits and a colon from file.
void	readGlyphs (Font *font, const char *fileName)
	Read glyph definitions from a Unifont .hex format file.
int	byCodePoint (const void *a, const void *b)
	Compare two Unicode code points to determine which is greater.

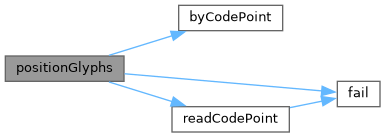

void	positionGlyphs (Font *font, const char *fileName, pixels_t *xMin)
	Position a glyph within a 16-by-16 pixel bounding box.
void	sortGlyphs (Font *font)
	Sort the glyphs in a font by Unicode code point.
void	buildOutline (Buffer *result, const byte bitmap[], const size_t byteCount, const enum FillSide fillSide)
	Build a glyph outline.
void	prepareOffsets (size_t *sizes)
	Prepare 32-bit glyph offsets in a font table.

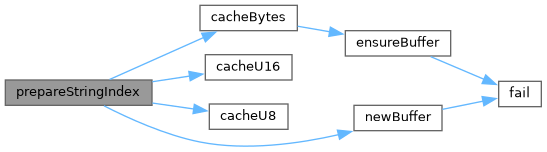

Buffer *	prepareStringIndex (const NameStrings names)
	Prepare a font name string index.
void	fillCFF (Font *font, int version, const NameStrings names)
	Add a CFF table to a font.

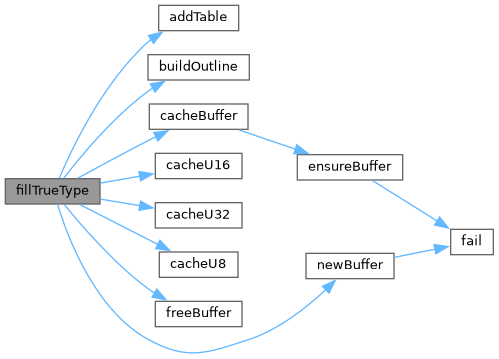

void	fillTrueType (Font *font, enum LocaFormat *format, uint_fast16_t *maxPoints, uint_fast16_t *maxContours)
	Add a TrueType table to a font.

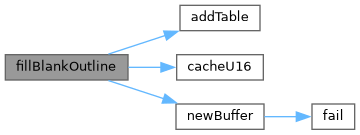

void	fillBlankOutline (Font *font)
	Create a dummy blank outline in a font table.

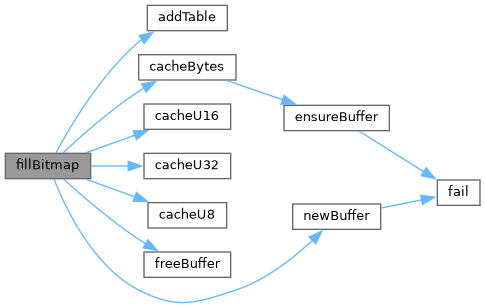

void	fillBitmap (Font *font)
	Fill OpenType bitmap data and location tables.
void	fillHeadTable (Font *font, enum LocaFormat locaFormat, pixels_t xMin)
	Fill a "head" font table.
void	fillHheaTable (Font *font, pixels_t xMin)
	Fill a "hhea" font table.
void	fillMaxpTable (Font *font, bool isCFF, uint_fast16_t maxPoints, uint_fast16_t maxContours)
	Fill a "maxp" font table.
void	fillOS2Table (Font *font)
	Fill an "OS/2" font table.
void	fillHmtxTable (Font *font)
	Fill an "hmtx" font table.

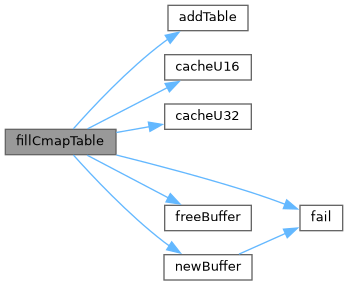

void	fillCmapTable (Font *font)
	Fill a "cmap" font table.
void	fillPostTable (Font *font)
	Fill a "post" font table.

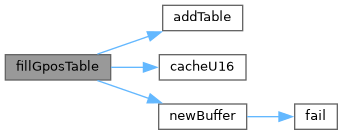

void	fillGposTable (Font *font)
	Fill a "GPOS" font table.

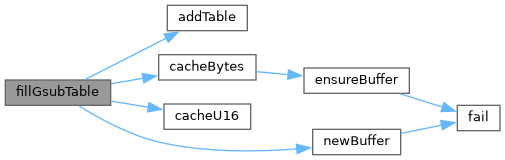

void	fillGsubTable (Font *font)
	Fill a "GSUB" font table.
void	cacheStringAsUTF16BE (Buffer *buf, const char *str)
	Cache a string as a big-ending UTF-16 surrogate pair.

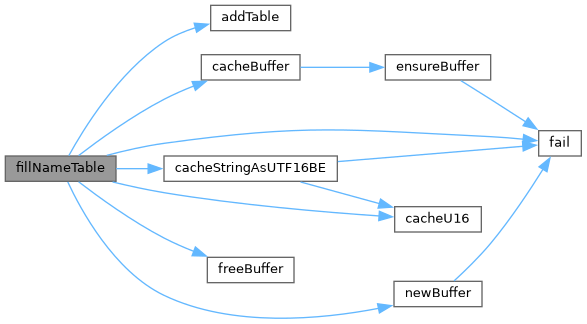

void	fillNameTable (Font *font, NameStrings nameStrings)
	Fill a "name" font table.
void	printVersion ()
	Print program version string on stdout.
void	printHelp ()
	Print help message to stdout and then exit.
const char *	matchToken (const char *operand, const char *key, char delimiter)
	Match a command line option with its key for enabling.
Options	parseOptions (char *const argv[const])
	Parse command line options.
int	main (int argc, char *argv[])
	The main function.

Variables
Buffer *	allBuffers
	Initial allocation of empty array of buffer pointers.
size_t	bufferCount
	Number of buffers in a Buffer * array.
size_t	nextBufferIndex
	Index number to tail element of Buffer * array.

Detailed Description

hex2otf - Convert GNU Unifont .hex file to OpenType font

This program reads a Unifont .hex format file and a file containing combining mark offset information, and produces an OpenType font file.

Copyright

Copyright © 2022 何志翔 (He Zhixiang)

Author

何志翔 (He Zhixiang)

Definition in file hex2otf.c.

Macro Definition Documentation

addByte

#define addByte

(

shift

)

Value:

            if (p == end) \
                break; \
            record->checksum += (uint_fast32_t)*p++ << (shift);

ASCENDER

#define ASCENDER   (GLYPH_HEIGHT - DESCENDER)

Count of pixels above baseline.

Definition at line 79 of file hex2otf.c.

B0

#define B0

(

shift

)

BX((shift), 0)

Clear a given bit in a word.

Definition at line 66 of file hex2otf.c.

B1

#define B1

(

shift

)

BX((shift), 1)

Set a given bit in a word.

Definition at line 67 of file hex2otf.c.

BX

#define BX	(		shift,
			x
	)		((uintmax_t)(!!(x)) << (shift))

Truncate & shift word.

Definition at line 65 of file hex2otf.c.

defineStore

#define defineStore	(		name,
			type
	)

Value:

void name (Buffer *buf, type value) \
{ \
    type *slot = getBufferSlot (buf, sizeof value); \
    *slot = value; \
}

Temporary define to look up an element in an array of given type.

This defintion is used to create lookup functions to return a given element in unsigned arrays of size 8, 16, and 32 bytes, and in an array of pixels.

Definition at line 350 of file hex2otf.c.

DESCENDER

#define DESCENDER   2

Count of pixels below baseline.

Definition at line 76 of file hex2otf.c.

FU

#define FU

(

x

)

((x) * FUPEM / GLYPH_HEIGHT)

Convert pixels to font units.

Definition at line 91 of file hex2otf.c.

FUPEM

#define FUPEM   64

Font units per em.

Definition at line 82 of file hex2otf.c.

GLYPH_HEIGHT

#define GLYPH_HEIGHT   16

Maximum glyph height, in pixels.

Definition at line 70 of file hex2otf.c.

GLYPH_MAX_BYTE_COUNT

#define GLYPH_MAX_BYTE_COUNT   (GLYPH_HEIGHT * GLYPH_MAX_WIDTH / 8)

Number of bytes to represent one bitmap glyph as a binary array.

Definition at line 73 of file hex2otf.c.

GLYPH_MAX_WIDTH

#define GLYPH_MAX_WIDTH   16

Maximum glyph width, in pixels.

Definition at line 69 of file hex2otf.c.

MAX_GLYPHS

#define MAX_GLYPHS   65536

An OpenType font has at most 65536 glyphs.

Definition at line 85 of file hex2otf.c.

MAX_NAME_IDS

#define MAX_NAME_IDS   256

Name IDs 0-255 are used for standard names.

Definition at line 88 of file hex2otf.c.

PRI_CP

#define PRI_CP   "U+%.4"PRIXFAST32

Format string to print Unicode code point.

Definition at line 58 of file hex2otf.c.

PW

#define PW

(

x

)

((x) / (GLYPH_HEIGHT / 8))

Convert glyph byte count to pixel width.

Definition at line 94 of file hex2otf.c.

static_assert

#define static_assert	(		a,
			b
	)		(assert(a))

If "a" is true, return string "b".

Definition at line 61 of file hex2otf.c.

U16MAX

#define U16MAX   0xffff

Maximum UTF-16 code point value.

Definition at line 55 of file hex2otf.c.

U32MAX

#define U32MAX   0xffffffff

Maximum UTF-32 code point value.

Definition at line 56 of file hex2otf.c.

VERSION

#define VERSION   "1.0.1"

Program version, for "--version" option.

Definition at line 51 of file hex2otf.c.

Typedef Documentation

Buffer

typedef struct Buffer Buffer

Generic data structure for a linked list of buffer elements.

A buffer can act as a vector (when filled with 'store*' functions), or a temporary output area (when filled with 'cache*' functions). The 'store*' functions use native endian. The 'cache*' functions use big endian or other formats in OpenType. Beware of memory alignment.

byte

typedef unsigned char byte

Definition of "byte" type as an unsigned char.

Definition at line 97 of file hex2otf.c.

Glyph

typedef struct Glyph Glyph

Data structure to hold data for one bitmap glyph.

This data structure holds data to represent one Unifont bitmap glyph: Unicode code point, number of bytes in its bitmap array, whether or not it is a combining character, and an offset from the glyph origin to the start of the bitmap.

NameStrings

typedef const char* NameStrings[MAX_NAME_IDS]

Array of OpenType names indexed directly by Name IDs.

Definition at line 604 of file hex2otf.c.

Options

typedef struct Options Options

Data structure to hold options for OpenType font output.

This data structure holds the status of options that can be specified as command line arguments for creating the output OpenType font file.

pixels_t

typedef int_least8_t pixels_t

This type must be able to represent max(GLYPH_MAX_WIDTH, GLYPH_HEIGHT).

Definition at line 100 of file hex2otf.c.

Table

typedef struct Table Table

Data structure for an OpenType table.

This data structure contains a table tag and a pointer to the start of the buffer that holds data for this OpenType table.

For information on the OpenType tables and their structure, see https://docs.microsoft.com/en-us/typography/opentype/spec/otff#font-tables.

Enumeration Type Documentation

ContourOp

enum ContourOp

Specify the current contour drawing operation.

Enumerator
OP_CLOSE	Close the current contour path that was being drawn.
OP_POINT	Add one more (x,y) point to the contor being drawn.

Definition at line 1136 of file hex2otf.c.

               {
    OP_CLOSE,    ///< Close the current contour path that was being drawn.
    OP_POINT     ///< Add one more (x,y) point to the contor being drawn.
};

FillSide

enum FillSide

Fill to the left side (CFF) or right side (TrueType) of a contour.

Enumerator
FILL_LEFT	Draw outline counter-clockwise (CFF, PostScript).
FILL_RIGHT	Draw outline clockwise (TrueType).

Definition at line 1144 of file hex2otf.c.

              {
    FILL_LEFT,    ///< Draw outline counter-clockwise (CFF, PostScript).
    FILL_RIGHT    ///< Draw outline clockwise (TrueType).
};

LocaFormat

enum LocaFormat

Index to Location ("loca") offset information.

This enumerated type encodes the type of offset to locations in a table. It denotes Offset16 (16-bit) and Offset32 (32-bit) offset types.

Enumerator
LOCA_OFFSET16	Offset to location is a 16-bit Offset16 value.
LOCA_OFFSET32	Offset to location is a 32-bit Offset32 value.

Definition at line 658 of file hex2otf.c.

                {
    LOCA_OFFSET16 = 0,    ///< Offset to location is a 16-bit Offset16 value
    LOCA_OFFSET32 = 1     ///< Offset to location is a 32-bit Offset32 value
};

Function Documentation

addTable()

void addTable	(	Font *	font,
		const char	tag[static 4],
		Buffer *	content
	)

Add a TrueType or OpenType table to the font.

This function adds a TrueType or OpenType table to a font. The 4-byte table tag is passed as an unsigned 32-bit integer in big-endian format.

Parameters

[in,out]	font	The font to which a font table will be added.
[in]	tag	The 4-byte table name.
[in]	content	The table bytes to add, of type Buffer *.

Definition at line 694 of file hex2otf.c.

{
    Table *table = getBufferSlot (font->tables, sizeof (Table));
    table->tag = tagAsU32 (tag);
    table->content = content;
}

Here is the caller graph for this function:

buildOutline()

void buildOutline	(	Buffer *	result,
		const byte	bitmap[],
		const size_t	byteCount,
		const enum FillSide	fillSide
	)

Build a glyph outline.

This function builds a glyph outline from a Unifont glyph bitmap.

Parameters

[out]	result	The resulting glyph outline.
[in]	bitmap	A bitmap array.
[in]	byteCount	the number of bytes in the input bitmap array.
[in]	fillSide	Enumerated indicator to fill left or right side.

Get the value of a given bit that is in a given row.

Invert the value of a given bit that is in a given row.

Definition at line 1160 of file hex2otf.c.

{
    enum Direction {RIGHT, LEFT, DOWN, UP}; // order is significant

    // respective coordinate deltas
    const pixels_t dx[] = {1, -1, 0, 0}, dy[] = {0, 0, -1, 1};

    assert (byteCount % GLYPH_HEIGHT == 0);
    const uint_fast8_t bytesPerRow = byteCount / GLYPH_HEIGHT;
    const pixels_t glyphWidth = bytesPerRow * 8;
    assert (glyphWidth <= GLYPH_MAX_WIDTH);

    #if GLYPH_MAX_WIDTH < 32
        typedef uint_fast32_t row_t;
    #elif GLYPH_MAX_WIDTH < 64
        typedef uint_fast64_t row_t;
    #else
        #error GLYPH_MAX_WIDTH is too large.
    #endif

    row_t pixels[GLYPH_HEIGHT + 2] = {0};
    for (pixels_t row = GLYPH_HEIGHT; row > 0; row--)
        for (pixels_t b = 0; b < bytesPerRow; b++)
            pixels[row] = pixels[row] << 8 | *bitmap++;
    typedef row_t graph_t[GLYPH_HEIGHT + 1];
    graph_t vectors[4];
    const row_t *lower = pixels, *upper = pixels + 1;
    for (pixels_t row = 0; row <= GLYPH_HEIGHT; row++)
    {
        const row_t m = (fillSide == FILL_RIGHT) - 1;
        vectors[RIGHT][row] = (m ^ (*lower << 1)) & (~m ^ (*upper << 1));
        vectors[LEFT ][row] = (m ^ (*upper     )) & (~m ^ (*lower     ));
        vectors[DOWN ][row] = (m ^ (*lower     )) & (~m ^ (*lower << 1));
        vectors[UP   ][row] = (m ^ (*upper << 1)) & (~m ^ (*upper     ));
        lower++;
        upper++;
    }
    graph_t selection = {0};
    const row_t x0 = (row_t)1 << glyphWidth;

    /// Get the value of a given bit that is in a given row.
    #define getRowBit(rows, x, y)  ((rows)[(y)] &  x0 >> (x))

    /// Invert the value of a given bit that is in a given row.
    #define flipRowBit(rows, x, y) ((rows)[(y)] ^= x0 >> (x))

    for (pixels_t y = GLYPH_HEIGHT; y >= 0; y--)
    {
        for (pixels_t x = 0; x <= glyphWidth; x++)
        {
            assert (!getRowBit (vectors[LEFT], x, y));
            assert (!getRowBit (vectors[UP], x, y));
            enum Direction initial;

            if (getRowBit (vectors[RIGHT], x, y))
                initial = RIGHT;
            else if (getRowBit (vectors[DOWN], x, y))
                initial = DOWN;
            else
                continue;

            static_assert ((GLYPH_MAX_WIDTH + 1) * (GLYPH_HEIGHT + 1) * 2 <=
                U16MAX, "potential overflow");

            uint_fast16_t lastPointCount = 0;
            for (bool converged = false;;)
            {
                uint_fast16_t pointCount = 0;
                enum Direction heading = initial;
                for (pixels_t tx = x, ty = y;;)
                {
                    if (converged)
                    {
                        storePixels (result, OP_POINT);
                        storePixels (result, tx);
                        storePixels (result, ty);
                    }
                    do
                    {
                        if (converged)
                            flipRowBit (vectors[heading], tx, ty);
                        tx += dx[heading];
                        ty += dy[heading];
                    } while (getRowBit (vectors[heading], tx, ty));
                    if (tx == x && ty == y)
                        break;
                    static_assert ((UP ^ DOWN) == 1 && (LEFT ^ RIGHT) == 1,
                        "wrong enums");
                    heading = (heading & 2) ^ 2;
                    heading |= !!getRowBit (selection, tx, ty);
                    heading ^= !getRowBit (vectors[heading], tx, ty);
                    assert (getRowBit (vectors[heading], tx, ty));
                    flipRowBit (selection, tx, ty);
                    pointCount++;
                }
                if (converged)
                    break;
                converged = pointCount == lastPointCount;
                lastPointCount = pointCount;
            }

            storePixels (result, OP_CLOSE);
        }
    }
    #undef getRowBit
    #undef flipRowBit
}

Here is the caller graph for this function:

byCodePoint()

int byCodePoint	(	const void *	a,
		const void *	b
	)

Compare two Unicode code points to determine which is greater.

This function compares the Unicode code points contained within two Glyph data structures. The function returns 1 if the first code point is greater, and -1 if the second is greater.

Parameters

[in]	a	A Glyph data structure containing the first code point.
[in]	b	A Glyph data structure containing the second code point.

Returns

1 if the code point a is greater, -1 if less, 0 if equal.

Definition at line 1040 of file hex2otf.c.

{
    const Glyph *const ga = a, *const gb = b;
    int gt = ga->codePoint > gb->codePoint;
    int lt = ga->codePoint < gb->codePoint;
    return gt - lt;
}

Here is the caller graph for this function:

byTableTag()

int byTableTag	(	const void *	a,
		const void *	b
	)

Compare tables by 4-byte unsigned table tag value.

This function takes two pointers to a TableRecord data structure and extracts the four-byte tag structure element for each. The two 32-bit numbers are then compared. If the first tag is greater than the first, then gt = 1 and lt = 0, and so 1 - 0 = 1 is returned. If the first is less than the second, then gt = 0 and lt = 1, and so 0 - 1 = -1 is returned.

Parameters

[in]	a	Pointer to the first TableRecord structure.
[in]	b	Pointer to the second TableRecord structure.

Returns

1 if the tag in "a" is greater, -1 if less, 0 if equal.

Definition at line 767 of file hex2otf.c.

{
    const struct TableRecord *const ra = a, *const rb = b;
    int gt = ra->tag > rb->tag;
    int lt = ra->tag < rb->tag;
    return gt - lt;
}

Here is the caller graph for this function:

cacheBuffer()

void cacheBuffer	(	Buffer *restrict	bufDest,
		const Buffer *restrict	bufSrc
	)

Append bytes of a table to a byte buffer.

Parameters

[in,out]	bufDest	The buffer to which the new bytes are appended.
[in]	bufSrc	The bytes to append to the buffer array.

Definition at line 523 of file hex2otf.c.

{
    size_t length = countBufferedBytes (bufSrc);
    ensureBuffer (bufDest, length);
    memcpy (bufDest->next, bufSrc->begin, length);
    bufDest->next += length;
}

Here is the call graph for this function:

Here is the caller graph for this function:

cacheBytes()

void cacheBytes	(	Buffer *restrict	buf,
		const void *restrict	src,
		size_t	count
	)

Append a string of bytes to a buffer.

This function appends an array of 1 to 4 bytes to the end of a buffer.

Parameters

[in,out]	buf	The buffer to which the bytes are appended.
[in]	src	The array of bytes to append to the buffer.
[in]	count	The number of bytes containing zeroes to append.

Definition at line 509 of file hex2otf.c.

{
    ensureBuffer (buf, count);
    memcpy (buf->next, src, count);
    buf->next += count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

cacheCFFOperand()

void cacheCFFOperand	(	Buffer *	buf,
		int_fast32_t	value
	)

Cache charstring number encoding in a CFF buffer.

This function caches two's complement 8-, 16-, and 32-bit words as per Adobe's Type 2 Charstring encoding for operands. These operands are used in Compact Font Format data structures.

Byte values can have offsets, for which this function compensates, optionally followed by additional bytes:

Byte Range   Offset   Bytes   Adjusted Range
----------   ------   -----   --------------
  0 to 11        0      1     0 to 11 (operators)
    12           0      2     Next byte is 8-bit op code
 13 to 18        0      1     13 to 18 (operators)
 19 to 20        0      2+    hintmask and cntrmask operators
 21 to 27        0      1     21 to 27 (operators)
    28           0      3     16-bit 2's complement number
 29 to 31        0      1     29 to 31 (operators)
 32 to 246    -139      1     -107 to +107
247 to 250    +108      2     +108 to +1131
251 to 254    -108      2     -108 to -1131
   255           0      5     16-bit integer and 16-bit fraction

Parameters

[in,out]	buf	The buffer to which the operand value is appended.
[in]	value	The operand value.

Definition at line 460 of file hex2otf.c.

{
    if (-107 <= value && value <= 107)
        cacheU8 (buf, value + 139);
    else if (108 <= value && value <= 1131)
    {
        cacheU8 (buf, (value - 108) / 256 + 247);
        cacheU8 (buf, (value - 108) % 256);
    }
    else if (-32768 <= value && value <= 32767)
    {
        cacheU8 (buf, 28);
        cacheU16 (buf, value);
    }
    else if (-2147483647 <= value && value <= 2147483647)
    {
        cacheU8 (buf, 29);
        cacheU32 (buf, value);
    }
    else
        assert (false); // other encodings are not used and omitted
    static_assert (GLYPH_MAX_WIDTH <= 107, "More encodings are needed.");
}

Here is the call graph for this function:

Here is the caller graph for this function:

cacheStringAsUTF16BE()

void cacheStringAsUTF16BE	(	Buffer *	buf,
		const char *	str
	)

Cache a string as a big-ending UTF-16 surrogate pair.

This function encodes a UTF-8 string as a big-endian UTF-16 surrogate pair.

Parameters

[in,out]	buf	Pointer to a Buffer struct to update.
[in]	str	The character array to encode.

Definition at line 2316 of file hex2otf.c.

{
    for (const char *p = str; *p; p++)
    {
        byte c = *p;
        if (c < 0x80)
        {
            cacheU16 (buf, c);
            continue;
        }
        int length = 1;
        byte mask = 0x40;
        for (; c & mask; mask >>= 1)
            length++;
        if (length == 1 || length > 4)
            fail ("Ill-formed UTF-8 sequence.");
        uint_fast32_t codePoint = c & (mask - 1);
        for (int i = 1; i < length; i++)
        {
            c = *++p;
            if ((c & 0xc0) != 0x80) // NUL checked here
                fail ("Ill-formed UTF-8 sequence.");
            codePoint = (codePoint << 6) | (c & 0x3f);
        }
        const int lowerBits = length==2 ? 7 : length==3 ? 11 : 16;
        if (codePoint >> lowerBits == 0)
            fail ("Ill-formed UTF-8 sequence."); // sequence should be shorter
        if (codePoint >= 0xd800 && codePoint <= 0xdfff)
            fail ("Ill-formed UTF-8 sequence.");
        if (codePoint > 0x10ffff)
            fail ("Ill-formed UTF-8 sequence.");
        if (codePoint > 0xffff)
        {
            cacheU16 (buf, 0xd800 | (codePoint - 0x10000) >> 10);
            cacheU16 (buf, 0xdc00 | (codePoint & 0x3ff));
        }
        else
            cacheU16 (buf, codePoint);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

cacheU16()

void cacheU16	(	Buffer *	buf,
		uint_fast16_t	value
	)

Append two unsigned bytes to the end of a byte array.

This function adds two bytes to the end of a byte array. The buffer is updated to account for the newly-added bytes.

Parameters

[in,out]	buf	The array of bytes to which to append two new bytes.
[in]	value	The 16-bit unsigned value to append to the buf array.

Definition at line 412 of file hex2otf.c.

{
    cacheU (buf, value, 2);
}

Here is the caller graph for this function:

cacheU32()

void cacheU32	(	Buffer *	buf,
		uint_fast32_t	value
	)

Append four unsigned bytes to the end of a byte array.

This function adds four bytes to the end of a byte array. The buffer is updated to account for the newly-added bytes.

Parameters

[in,out]	buf	The array of bytes to which to append four new bytes.
[in]	value	The 32-bit unsigned value to append to the buf array.

Definition at line 427 of file hex2otf.c.

{
    cacheU (buf, value, 4);
}

Here is the caller graph for this function:

cacheU8()

void cacheU8	(	Buffer *	buf,
		uint_fast8_t	value
	)

Append one unsigned byte to the end of a byte array.

This function adds one byte to the end of a byte array. The buffer is updated to account for the newly-added byte.

Parameters

[in,out]	buf	The array of bytes to which to append a new byte.
[in]	value	The 8-bit unsigned value to append to the buf array.

Definition at line 397 of file hex2otf.c.

{
    storeU8 (buf, value & 0xff);
}

Here is the caller graph for this function:

cacheZeros()

void cacheZeros	(	Buffer *	buf,
		size_t	count
	)

Append 1 to 4 bytes of zeroes to a buffer, for padding.

Parameters

[in,out]	buf	The buffer to which the operand value is appended.
[in]	count	The number of bytes containing zeroes to append.

Definition at line 491 of file hex2otf.c.

{
    ensureBuffer (buf, count);
    memset (buf->next, 0, count);
    buf->next += count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

cleanBuffers()

void cleanBuffers

(

)

Free all allocated buffer pointers.

This function frees all buffer pointers previously allocated in the initBuffers function.

Definition at line 170 of file hex2otf.c.

{
    for (size_t i = 0; i < bufferCount; i++)
        if (allBuffers[i].capacity)
            free (allBuffers[i].begin);
    free (allBuffers);
    bufferCount = 0;
}

Here is the caller graph for this function:

defineStore()

defineStore	(	storeU8	,
		uint_least8_t
	)

Definition at line 356 of file hex2otf.c.

{
    assert (1 <= bytes && bytes <= 4);
    ensureBuffer (buf, bytes);
    switch (bytes)
    {
        case 4: *buf->next++ = value >> 24 & 0xff; // fall through
        case 3: *buf->next++ = value >> 16 & 0xff; // fall through
        case 2: *buf->next++ = value >> 8  & 0xff; // fall through
        case 1: *buf->next++ = value       & 0xff;
    }
}

ensureBuffer()

void ensureBuffer	(	Buffer *	buf,
		size_t	needed
	)

Ensure that the buffer has at least the specified minimum size.

This function takes a buffer array of type Buffer and the necessary minimum number of elements as inputs, and attempts to increase the size of the buffer if it must be larger.

If the buffer is too small and cannot be resized, the program will terminate with an error message and an exit status of EXIT_FAILURE.

Parameters

[in,out]	buf	The buffer to check.
[in]	needed	The required minimum number of elements in the buffer.

Definition at line 239 of file hex2otf.c.

{
    if (buf->end - buf->next >= needed)
        return;
    ptrdiff_t occupied = buf->next - buf->begin;
    size_t required = occupied + needed;
    if (required < needed) // overflow
        fail ("Cannot allocate %zu + %zu bytes of memory.", occupied, needed);
    if (required > SIZE_MAX / 2)
        buf->capacity = required;
    else while (buf->capacity < required)
        buf->capacity *= 2;
    void *extended = realloc (buf->begin, buf->capacity);
    if (!extended)
        fail ("Failed to allocate %zu bytes of memory.", buf->capacity);
    buf->begin = extended;
    buf->next = buf->begin + occupied;
    buf->end = buf->begin + buf->capacity;
}

Here is the call graph for this function:

Here is the caller graph for this function:

fail()

void fail	(	const char *	reason,
			...
	)

Print an error message on stderr, then exit.

This function prints the provided error string and optional following arguments to stderr, and then exits with a status of EXIT_FAILURE.

Parameters

[in]	reason	The output string to describe the error.
[in]	...	Optional following arguments to output.

Definition at line 113 of file hex2otf.c.

{
    fputs ("ERROR: ", stderr);
    va_list args;
    va_start (args, reason);
    vfprintf (stderr, reason, args);
    va_end (args);
    putc ('\n', stderr);
    exit (EXIT_FAILURE);
}

Here is the caller graph for this function:

fillBitmap()

void fillBitmap

(

Font *

font

)

Fill OpenType bitmap data and location tables.

This function fills an Embedded Bitmap Data (EBDT) Table and an Embedded Bitmap Location (EBLC) Table with glyph bitmap information. These tables enable embedding bitmaps in OpenType fonts. No Embedded Bitmap Scaling (EBSC) table is used for the bitmap glyphs, only EBDT and EBLC.

Parameters

[in,out]

font

Pointer to a Font struct in which to add bitmaps.

Definition at line 1728 of file hex2otf.c.

{
    const Glyph *const glyphs = getBufferHead (font->glyphs);
    const Glyph *const glyphsEnd = getBufferTail (font->glyphs);
    size_t bitmapsSize = 0;
    for (const Glyph *glyph = glyphs; glyph < glyphsEnd; glyph++)
        bitmapsSize += glyph->byteCount;
    Buffer *ebdt = newBuffer (4 + bitmapsSize);
    addTable (font, "EBDT", ebdt);
    cacheU16 (ebdt, 2); // majorVersion
    cacheU16 (ebdt, 0); // minorVersion
    uint_fast8_t byteCount = 0; // unequal to any glyph
    pixels_t pos = 0;
    bool combining = false;
    Buffer *rangeHeads = newBuffer (32);
    Buffer *offsets = newBuffer (64);
    for (const Glyph *glyph = glyphs; glyph < glyphsEnd; glyph++)
    {
        if (glyph->byteCount != byteCount || glyph->pos != pos ||
            glyph->combining != combining)
        {
            storeU16 (rangeHeads, glyph - glyphs);
            storeU32 (offsets, countBufferedBytes (ebdt));
            byteCount = glyph->byteCount;
            pos = glyph->pos;
            combining = glyph->combining;
        }
        cacheBytes (ebdt, glyph->bitmap, byteCount);
    }
    const uint_least16_t *ranges = getBufferHead (rangeHeads);
    const uint_least16_t *rangesEnd = getBufferTail (rangeHeads);
    uint_fast32_t rangeCount = rangesEnd - ranges;
    storeU16 (rangeHeads, font->glyphCount);
    Buffer *eblc = newBuffer (4096);
    addTable (font, "EBLC", eblc);
    cacheU16 (eblc, 2); // majorVersion
    cacheU16 (eblc, 0); // minorVersion
    cacheU32 (eblc, 1); // numSizes
    { // bitmapSizes[0]
        cacheU32 (eblc, 56); // indexSubTableArrayOffset
        cacheU32 (eblc, (8 + 20) * rangeCount); // indexTablesSize
        cacheU32 (eblc, rangeCount); // numberOfIndexSubTables
        cacheU32 (eblc, 0); // colorRef
        { // hori
            cacheU8 (eblc, ASCENDER); // ascender
            cacheU8 (eblc, -DESCENDER); // descender
            cacheU8 (eblc, font->maxWidth); // widthMax
            cacheU8 (eblc, 1); // caretSlopeNumerator
            cacheU8 (eblc, 0); // caretSlopeDenominator
            cacheU8 (eblc, 0); // caretOffset
            cacheU8 (eblc, 0); // minOriginSB
            cacheU8 (eblc, 0); // minAdvanceSB
            cacheU8 (eblc, ASCENDER); // maxBeforeBL
            cacheU8 (eblc, -DESCENDER); // minAfterBL
            cacheU8 (eblc, 0); // pad1
            cacheU8 (eblc, 0); // pad2
        }
        { // vert
            cacheU8 (eblc, ASCENDER); // ascender
            cacheU8 (eblc, -DESCENDER); // descender
            cacheU8 (eblc, font->maxWidth); // widthMax
            cacheU8 (eblc, 1); // caretSlopeNumerator
            cacheU8 (eblc, 0); // caretSlopeDenominator
            cacheU8 (eblc, 0); // caretOffset
            cacheU8 (eblc, 0); // minOriginSB
            cacheU8 (eblc, 0); // minAdvanceSB
            cacheU8 (eblc, ASCENDER); // maxBeforeBL
            cacheU8 (eblc, -DESCENDER); // minAfterBL
            cacheU8 (eblc, 0); // pad1
            cacheU8 (eblc, 0); // pad2
        }
        cacheU16 (eblc, 0); // startGlyphIndex
        cacheU16 (eblc, font->glyphCount - 1); // endGlyphIndex
        cacheU8 (eblc, 16); // ppemX
        cacheU8 (eblc, 16); // ppemY
        cacheU8 (eblc, 1); // bitDepth
        cacheU8 (eblc, 1); // flags = Horizontal
    }
    { // IndexSubTableArray
        uint_fast32_t offset = rangeCount * 8;
        for (const uint_least16_t *p = ranges; p < rangesEnd; p++)
        {
            cacheU16 (eblc, *p); // firstGlyphIndex
            cacheU16 (eblc, p[1] - 1); // lastGlyphIndex
            cacheU32 (eblc, offset); // additionalOffsetToIndexSubtable
            offset += 20;
        }
    }
    { // IndexSubTables
        const uint_least32_t *offset = getBufferHead (offsets);
        for (const uint_least16_t *p = ranges; p < rangesEnd; p++)
        {
            const Glyph *glyph = &glyphs[*p];
            cacheU16 (eblc, 2); // indexFormat
            cacheU16 (eblc, 5); // imageFormat
            cacheU32 (eblc, *offset++); // imageDataOffset
            cacheU32 (eblc, glyph->byteCount); // imageSize
            { // bigMetrics
                cacheU8 (eblc, GLYPH_HEIGHT); // height
                const uint_fast8_t width = PW (glyph->byteCount);
                cacheU8 (eblc, width); // width
                cacheU8 (eblc, glyph->pos); // horiBearingX
                cacheU8 (eblc, ASCENDER); // horiBearingY
                cacheU8 (eblc, glyph->combining ? 0 : width); // horiAdvance
                cacheU8 (eblc, 0); // vertBearingX
                cacheU8 (eblc, 0); // vertBearingY
                cacheU8 (eblc, GLYPH_HEIGHT); // vertAdvance
            }
        }
    }
    freeBuffer (rangeHeads);
    freeBuffer (offsets);
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillBlankOutline()

void fillBlankOutline

(

Font *

font

)

Create a dummy blank outline in a font table.

Parameters

[in,out]

font

Pointer to a Font struct to insert a blank outline.

Definition at line 1697 of file hex2otf.c.

{
    Buffer *glyf = newBuffer (12);
    addTable (font, "glyf", glyf);
    // Empty table is not allowed, but an empty outline for glyph 0 suffices.
    cacheU16 (glyf, 0); // numberOfContours
    cacheU16 (glyf, FU (0)); // xMin
    cacheU16 (glyf, FU (0)); // yMin
    cacheU16 (glyf, FU (0)); // xMax
    cacheU16 (glyf, FU (0)); // yMax
    cacheU16 (glyf, 0); // instructionLength
    Buffer *loca = newBuffer (2 * (font->glyphCount + 1));
    addTable (font, "loca", loca);
    cacheU16 (loca, 0); // offsets[0]
    assert (countBufferedBytes (glyf) % 2 == 0);
    for (uint_fast32_t i = 1; i <= font->glyphCount; i++)
        cacheU16 (loca, countBufferedBytes (glyf) / 2); // offsets[i]
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillCFF()

void fillCFF	(	Font *	font,
		int	version,
		const NameStrings	names
	)

Add a CFF table to a font.

Parameters

[in,out]	font	Pointer to a Font struct to contain the CFF table.
[in]	version	Version of CFF table, with value 1 or 2.
[in]	names	List of NameStrings.

Use fixed width integer for variables to simplify offset calculation.

Definition at line 1329 of file hex2otf.c.

{
    // HACK: For convenience, CFF data structures are hard coded.
    assert (0 < version && version <= 2);
    Buffer *cff = newBuffer (65536);
    addTable (font, version == 1 ? "CFF " : "CFF2", cff);

    /// Use fixed width integer for variables to simplify offset calculation.
    #define cacheCFF32(buf, x) (cacheU8 ((buf), 29), cacheU32 ((buf), (x)))

    // In Unifont, 16px glyphs are more common. This is used by CFF1 only.
    const pixels_t defaultWidth = 16, nominalWidth = 8;
    if (version == 1)
    {
        Buffer *strings = prepareStringIndex (names);
        size_t stringsSize = countBufferedBytes (strings);
        const char *cffName = names[6];
        assert (cffName);
        size_t nameLength = strlen (cffName);
        size_t namesSize = nameLength + 5;
        // These sizes must be updated together with the data below.
        size_t offsets[] = {4, namesSize, 45, stringsSize, 2, 5, 8, 32, 4, 0};
        prepareOffsets (offsets);
        { // Header
            cacheU8 (cff, 1); // major
            cacheU8 (cff, 0); // minor
            cacheU8 (cff, 4); // hdrSize
            cacheU8 (cff, 1); // offSize
        }
        assert (countBufferedBytes (cff) == offsets[0]);
        { // Name INDEX (should not be used by OpenType readers)
            cacheU16 (cff, 1); // count
            cacheU8 (cff, 1); // offSize
            cacheU8 (cff, 1); // offset[0]
            if (nameLength + 1 > 255) // must be too long; spec limit is 63
                fail ("PostScript name is too long.");
            cacheU8 (cff, nameLength + 1); // offset[1]
            cacheBytes (cff, cffName, nameLength);
        }
        assert (countBufferedBytes (cff) == offsets[1]);
        { // Top DICT INDEX
            cacheU16 (cff, 1); // count
            cacheU8 (cff, 1); // offSize
            cacheU8 (cff, 1); // offset[0]
            cacheU8 (cff, 41); // offset[1]
            cacheCFFOperand (cff, 391); // "Adobe"
            cacheCFFOperand (cff, 392); // "Identity"
            cacheCFFOperand (cff, 0);
            cacheBytes (cff, (byte[]){12, 30}, 2); // ROS
            cacheCFF32 (cff, font->glyphCount);
            cacheBytes (cff, (byte[]){12, 34}, 2); // CIDCount
            cacheCFF32 (cff, offsets[6]);
            cacheBytes (cff, (byte[]){12, 36}, 2); // FDArray
            cacheCFF32 (cff, offsets[5]);
            cacheBytes (cff, (byte[]){12, 37}, 2); // FDSelect
            cacheCFF32 (cff, offsets[4]);
            cacheU8 (cff, 15); // charset
            cacheCFF32 (cff, offsets[8]);
            cacheU8 (cff, 17); // CharStrings
        }
        assert (countBufferedBytes (cff) == offsets[2]);
        { // String INDEX
            cacheBuffer (cff, strings);
            freeBuffer (strings);
        }
        assert (countBufferedBytes (cff) == offsets[3]);
        cacheU16 (cff, 0); // Global Subr INDEX
        assert (countBufferedBytes (cff) == offsets[4]);
        { // Charsets
            cacheU8 (cff, 2); // format
            { // Range2[0]
                cacheU16 (cff, 1); // first
                cacheU16 (cff, font->glyphCount - 2); // nLeft
            }
        }
        assert (countBufferedBytes (cff) == offsets[5]);
        { // FDSelect
            cacheU8 (cff, 3); // format
            cacheU16 (cff, 1); // nRanges
            cacheU16 (cff, 0); // first
            cacheU8 (cff, 0); // fd
            cacheU16 (cff, font->glyphCount); // sentinel
        }
        assert (countBufferedBytes (cff) == offsets[6]);
        { // FDArray
            cacheU16 (cff, 1); // count
            cacheU8 (cff, 1); // offSize
            cacheU8 (cff, 1); // offset[0]
            cacheU8 (cff, 28); // offset[1]
            cacheCFFOperand (cff, 393);
            cacheBytes (cff, (byte[]){12, 38}, 2); // FontName
            // Windows requires FontMatrix in Font DICT.
            const byte unit[] = {0x1e,0x15,0x62,0x5c,0x6f}; // 1/64 (0.015625)
            cacheBytes (cff, unit, sizeof unit);
            cacheCFFOperand (cff, 0);
            cacheCFFOperand (cff, 0);
            cacheBytes (cff, unit, sizeof unit);
            cacheCFFOperand (cff, 0);
            cacheCFFOperand (cff, 0);
            cacheBytes (cff, (byte[]){12, 7}, 2); // FontMatrix
            cacheCFFOperand (cff, offsets[8] - offsets[7]); // size
            cacheCFF32 (cff, offsets[7]); // offset
            cacheU8 (cff, 18); // Private
        }
        assert (countBufferedBytes (cff) == offsets[7]);
        { // Private
            cacheCFFOperand (cff, FU (defaultWidth));
            cacheU8 (cff, 20); // defaultWidthX
            cacheCFFOperand (cff, FU (nominalWidth));
            cacheU8 (cff, 21); // nominalWidthX
        }
        assert (countBufferedBytes (cff) == offsets[8]);
    }
    else
    {
        assert (version == 2);
        // These sizes must be updated together with the data below.
        size_t offsets[] = {5, 21, 4, 10, 0};
        prepareOffsets (offsets);
        { // Header
            cacheU8 (cff, 2); // majorVersion
            cacheU8 (cff, 0); // minorVersion
            cacheU8 (cff, 5); // headerSize
            cacheU16 (cff, offsets[1] - offsets[0]); // topDictLength
        }
        assert (countBufferedBytes (cff) == offsets[0]);
        { // Top DICT
            const byte unit[] = {0x1e,0x15,0x62,0x5c,0x6f}; // 1/64 (0.015625)
            cacheBytes (cff, unit, sizeof unit);
            cacheCFFOperand (cff, 0);
            cacheCFFOperand (cff, 0);
            cacheBytes (cff, unit, sizeof unit);
            cacheCFFOperand (cff, 0);
            cacheCFFOperand (cff, 0);
            cacheBytes (cff, (byte[]){12, 7}, 2); // FontMatrix
            cacheCFFOperand (cff, offsets[2]);
            cacheBytes (cff, (byte[]){12, 36}, 2); // FDArray
            cacheCFFOperand (cff, offsets[3]);
            cacheU8 (cff, 17); // CharStrings
        }
        assert (countBufferedBytes (cff) == offsets[1]);
        cacheU32 (cff, 0); // Global Subr INDEX
        assert (countBufferedBytes (cff) == offsets[2]);
        { // Font DICT INDEX
            cacheU32 (cff, 1); // count
            cacheU8 (cff, 1); // offSize
            cacheU8 (cff, 1); // offset[0]
            cacheU8 (cff, 4); // offset[1]
            cacheCFFOperand (cff, 0);
            cacheCFFOperand (cff, 0);
            cacheU8 (cff, 18); // Private
        }
        assert (countBufferedBytes (cff) == offsets[3]);
    }
    { // CharStrings INDEX
        Buffer *offsets = newBuffer (4096);
        Buffer *charstrings = newBuffer (4096);
        Buffer *outline = newBuffer (1024);
        const Glyph *glyph = getBufferHead (font->glyphs);
        const Glyph *const endGlyph = glyph + font->glyphCount;
        for (; glyph < endGlyph; glyph++)
        {
            // CFF offsets start at 1
            storeU32 (offsets, countBufferedBytes (charstrings) + 1);

            pixels_t rx = -glyph->pos;
            pixels_t ry = DESCENDER;
            resetBuffer (outline);
            buildOutline (outline, glyph->bitmap, glyph->byteCount, FILL_LEFT);
            enum CFFOp {rmoveto=21, hmoveto=22, vmoveto=4, hlineto=6,
                vlineto=7, endchar=14};
            enum CFFOp pendingOp = 0;
            const int STACK_LIMIT = version == 1 ? 48 : 513;
            int stackSize = 0;
            bool isDrawing = false;
            pixels_t width = glyph->combining ? 0 : PW (glyph->byteCount);
            if (version == 1 && width != defaultWidth)
            {
                cacheCFFOperand (charstrings, FU (width - nominalWidth));
                stackSize++;
            }
            for (const pixels_t *p = getBufferHead (outline),
                 *const end = getBufferTail (outline); p < end;)
            {
                int s = 0;
                const enum ContourOp op = *p++;
                if (op == OP_POINT)
                {
                    const pixels_t x = *p++, y = *p++;
                    if (x != rx)
                    {
                        cacheCFFOperand (charstrings, FU (x - rx));
                        rx = x;
                        stackSize++;
                        s |= 1;
                    }
                    if (y != ry)
                    {
                        cacheCFFOperand (charstrings, FU (y - ry));
                        ry = y;
                        stackSize++;
                        s |= 2;
                    }
                    assert (!(isDrawing && s == 3));
                }
                if (s)
                {
                    if (!isDrawing)
                    {
                        const enum CFFOp moves[] = {0, hmoveto, vmoveto,
                            rmoveto};
                        cacheU8 (charstrings, moves[s]);
                        stackSize = 0;
                    }
                    else if (!pendingOp)
                        pendingOp = (enum CFFOp[]){0, hlineto, vlineto}[s];
                }
                else if (!isDrawing)
                {
                    // only when the first point happens to be (0, 0)
                    cacheCFFOperand (charstrings, FU (0));
                    cacheU8 (charstrings, hmoveto);
                    stackSize = 0;
                }
                if (op == OP_CLOSE || stackSize >= STACK_LIMIT)
                {
                    assert (stackSize <= STACK_LIMIT);
                    cacheU8 (charstrings, pendingOp);
                    pendingOp = 0;
                    stackSize = 0;
                }
                isDrawing = op != OP_CLOSE;
            }
            if (version == 1)
                cacheU8 (charstrings, endchar);
        }
        size_t lastOffset = countBufferedBytes (charstrings) + 1;
        #if SIZE_MAX > U32MAX
            if (lastOffset > U32MAX)
                fail ("CFF data exceeded size limit.");
        #endif
        storeU32 (offsets, lastOffset);
        int offsetSize = 1 + (lastOffset > 0xff)
                           + (lastOffset > 0xffff)
                           + (lastOffset > 0xffffff);
        // count (must match 'numGlyphs' in 'maxp' table)
        cacheU (cff, font->glyphCount, version * 2);
        cacheU8 (cff, offsetSize); // offSize
        const uint_least32_t *p = getBufferHead (offsets);
        const uint_least32_t *const end = getBufferTail (offsets);
        for (; p < end; p++)
            cacheU (cff, *p, offsetSize); // offsets
        cacheBuffer (cff, charstrings); // data
        freeBuffer (offsets);
        freeBuffer (charstrings);
        freeBuffer (outline);
    }
    #undef cacheCFF32
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillCmapTable()

void fillCmapTable

(

Font *

font

)

Fill a "cmap" font table.

The "cmap" table contains character to glyph index mapping information.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 2109 of file hex2otf.c.

{
    Glyph *const glyphs = getBufferHead (font->glyphs);
    Buffer *rangeHeads = newBuffer (16);
    uint_fast32_t rangeCount = 0;
    uint_fast32_t bmpRangeCount = 1; // 1 for the last 0xffff-0xffff range
    glyphs[0].codePoint = glyphs[1].codePoint; // to start a range at glyph 1
    for (uint_fast16_t i = 1; i < font->glyphCount; i++)
    {
        if (glyphs[i].codePoint != glyphs[i - 1].codePoint + 1)
        {
            storeU16 (rangeHeads, i);
            rangeCount++;
            bmpRangeCount += glyphs[i].codePoint < 0xffff;
        }
    }
    Buffer *cmap = newBuffer (256);
    addTable (font, "cmap", cmap);
    // Format 4 table is always generated for compatibility.
    bool hasFormat12 = glyphs[font->glyphCount - 1].codePoint > 0xffff;
    cacheU16 (cmap, 0); // version
    cacheU16 (cmap, 1 + hasFormat12); // numTables
    { // encodingRecords[0]
        cacheU16 (cmap, 3); // platformID
        cacheU16 (cmap, 1); // encodingID
        cacheU32 (cmap, 12 + 8 * hasFormat12); // subtableOffset
    }
    if (hasFormat12) // encodingRecords[1]
    {
        cacheU16 (cmap, 3); // platformID
        cacheU16 (cmap, 10); // encodingID
        cacheU32 (cmap, 36 + 8 * bmpRangeCount); // subtableOffset
    }
    const uint_least16_t *ranges = getBufferHead (rangeHeads);
    const uint_least16_t *const rangesEnd = getBufferTail (rangeHeads);
    storeU16 (rangeHeads, font->glyphCount);
    { // format 4 table
        cacheU16 (cmap, 4); // format
        cacheU16 (cmap, 16 + 8 * bmpRangeCount); // length
        cacheU16 (cmap, 0); // language
        if (bmpRangeCount * 2 > U16MAX)
            fail ("Too many ranges in 'cmap' table.");
        cacheU16 (cmap, bmpRangeCount * 2); // segCountX2
        uint_fast16_t searchRange = 1, entrySelector = -1;
        while (searchRange <= bmpRangeCount)
        {
            searchRange <<= 1;
            entrySelector++;
        }
        cacheU16 (cmap, searchRange); // searchRange
        cacheU16 (cmap, entrySelector); // entrySelector
        cacheU16 (cmap, bmpRangeCount * 2 - searchRange); // rangeShift
        { // endCode[]
            const uint_least16_t *p = ranges;
            for (p++; p < rangesEnd && glyphs[*p].codePoint < 0xffff; p++)
                cacheU16 (cmap, glyphs[*p - 1].codePoint);
            uint_fast32_t cp = glyphs[*p - 1].codePoint;
            if (cp > 0xfffe)
                cp = 0xfffe;
            cacheU16 (cmap, cp);
            cacheU16 (cmap, 0xffff);
        }
        cacheU16 (cmap, 0); // reservedPad
        { // startCode[]
            for (uint_fast32_t i = 0; i < bmpRangeCount - 1; i++)
                cacheU16 (cmap, glyphs[ranges[i]].codePoint);
            cacheU16 (cmap, 0xffff);
        }
        { // idDelta[]
            const uint_least16_t *p = ranges;
            for (; p < rangesEnd && glyphs[*p].codePoint < 0xffff; p++)
                cacheU16 (cmap, *p - glyphs[*p].codePoint);
            uint_fast16_t delta = 1;
            if (p < rangesEnd && *p == 0xffff)
                delta = *p - glyphs[*p].codePoint;
            cacheU16 (cmap, delta);
        }
        { // idRangeOffsets[]
            for (uint_least16_t i = 0; i < bmpRangeCount; i++)
                cacheU16 (cmap, 0);
        }
    }
    if (hasFormat12) // format 12 table
    {
        cacheU16 (cmap, 12); // format
        cacheU16 (cmap, 0); // reserved
        cacheU32 (cmap, 16 + 12 * rangeCount); // length
        cacheU32 (cmap, 0); // language
        cacheU32 (cmap, rangeCount); // numGroups

        // groups[]
        for (const uint_least16_t *p = ranges; p < rangesEnd; p++)
        {
            cacheU32 (cmap, glyphs[*p].codePoint); // startCharCode
            cacheU32 (cmap, glyphs[p[1] - 1].codePoint); // endCharCode
            cacheU32 (cmap, *p); // startGlyphID
        }
    }
    freeBuffer (rangeHeads);
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillGposTable()

void fillGposTable

(

Font *

font

)

Fill a "GPOS" font table.

The "GPOS" table contains information for glyph positioning.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 2241 of file hex2otf.c.

{
    Buffer *gpos = newBuffer (16);
    addTable (font, "GPOS", gpos);
    cacheU16 (gpos, 1); // majorVersion
    cacheU16 (gpos, 0); // minorVersion
    cacheU16 (gpos, 10); // scriptListOffset
    cacheU16 (gpos, 12); // featureListOffset
    cacheU16 (gpos, 14); // lookupListOffset
    { // ScriptList table
        cacheU16 (gpos, 0); // scriptCount
    }
    { // Feature List table
        cacheU16 (gpos, 0); // featureCount
    }
    { // Lookup List Table
        cacheU16 (gpos, 0); // lookupCount
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillGsubTable()

void fillGsubTable

(

Font *

font

)

Fill a "GSUB" font table.

The "GSUB" table contains information for glyph substitution.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 2269 of file hex2otf.c.

{
    Buffer *gsub = newBuffer (38);
    addTable (font, "GSUB", gsub);
    cacheU16 (gsub, 1); // majorVersion
    cacheU16 (gsub, 0); // minorVersion
    cacheU16 (gsub, 10); // scriptListOffset
    cacheU16 (gsub, 34); // featureListOffset
    cacheU16 (gsub, 36); // lookupListOffset
    { // ScriptList table
        cacheU16 (gsub, 2); // scriptCount
        { // scriptRecords[0]
            cacheBytes (gsub, "DFLT", 4); // scriptTag
            cacheU16 (gsub, 14); // scriptOffset
        }
        { // scriptRecords[1]
            cacheBytes (gsub, "thai", 4); // scriptTag
            cacheU16 (gsub, 14); // scriptOffset
        }
        { // Script table
            cacheU16 (gsub, 4); // defaultLangSysOffset
            cacheU16 (gsub, 0); // langSysCount
            { // Default Language System table
                cacheU16 (gsub, 0); // lookupOrderOffset
                cacheU16 (gsub, 0); // requiredFeatureIndex
                cacheU16 (gsub, 0); // featureIndexCount
            }
        }
    }
    { // Feature List table
        cacheU16 (gsub, 0); // featureCount
    }
    { // Lookup List Table
        cacheU16 (gsub, 0); // lookupCount
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillHeadTable()

void fillHeadTable	(	Font *	font,
		enum LocaFormat	locaFormat,
		pixels_t	xMin
	)

Fill a "head" font table.

The "head" table contains font header information common to the whole font.

Parameters

[in,out]	font	The Font struct to which to add the table.
[in]	locaFormat	The "loca" offset index location table.
[in]	xMin	The minimum x-coordinate for a glyph.

Definition at line 1853 of file hex2otf.c.

{
    Buffer *head = newBuffer (56);
    addTable (font, "head", head);
    cacheU16 (head, 1); // majorVersion
    cacheU16 (head, 0); // minorVersion
    cacheZeros (head, 4); // fontRevision (unused)
    // The 'checksumAdjustment' field is a checksum of the entire file.
    // It is later calculated and written directly in the 'writeFont' function.
    cacheU32 (head, 0); // checksumAdjustment (placeholder)
    cacheU32 (head, 0x5f0f3cf5); // magicNumber
    const uint_fast16_t flags =
        + B1 ( 0) // baseline at y=0
        + B1 ( 1) // LSB at x=0 (doubtful; probably should be LSB=xMin)
        + B0 ( 2) // instructions may depend on point size
        + B0 ( 3) // force internal ppem to integers
        + B0 ( 4) // instructions may alter advance width
        + B0 ( 5) // not used in OpenType
        + B0 ( 6) // not used in OpenType
        + B0 ( 7) // not used in OpenType
        + B0 ( 8) // not used in OpenType
        + B0 ( 9) // not used in OpenType
        + B0 (10) // not used in OpenType
        + B0 (11) // font transformed
        + B0 (12) // font converted
        + B0 (13) // font optimized for ClearType
        + B0 (14) // last resort font
        + B0 (15) // reserved
    ;
    cacheU16 (head, flags); // flags
    cacheU16 (head, FUPEM); // unitsPerEm
    cacheZeros (head, 8); // created (unused)
    cacheZeros (head, 8); // modified (unused)
    cacheU16 (head, FU (xMin)); // xMin
    cacheU16 (head, FU (-DESCENDER)); // yMin
    cacheU16 (head, FU (font->maxWidth)); // xMax
    cacheU16 (head, FU (ASCENDER)); // yMax
    // macStyle (must agree with 'fsSelection' in 'OS/2' table)
    const uint_fast16_t macStyle =
        + B0 (0) // bold
        + B0 (1) // italic
        + B0 (2) // underline
        + B0 (3) // outline
        + B0 (4) // shadow
        + B0 (5) // condensed
        + B0 (6) // extended
        //    7-15  reserved
    ;
    cacheU16 (head, macStyle);
    cacheU16 (head, GLYPH_HEIGHT); // lowestRecPPEM
    cacheU16 (head, 2); // fontDirectionHint
    cacheU16 (head, locaFormat); // indexToLocFormat
    cacheU16 (head, 0); // glyphDataFormat
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillHheaTable()

void fillHheaTable	(	Font *	font,
		pixels_t	xMin
	)

Fill a "hhea" font table.

The "hhea" table contains horizontal header information, for example left and right side bearings.

Parameters

[in,out]	font	The Font struct to which to add the table.
[in]	xMin	The minimum x-coordinate for a glyph.

Definition at line 1918 of file hex2otf.c.

{
    Buffer *hhea = newBuffer (36);
    addTable (font, "hhea", hhea);
    cacheU16 (hhea, 1); // majorVersion
    cacheU16 (hhea, 0); // minorVersion
    cacheU16 (hhea, FU (ASCENDER)); // ascender
    cacheU16 (hhea, FU (-DESCENDER)); // descender
    cacheU16 (hhea, FU (0)); // lineGap
    cacheU16 (hhea, FU (font->maxWidth)); // advanceWidthMax
    cacheU16 (hhea, FU (xMin)); // minLeftSideBearing
    cacheU16 (hhea, FU (0)); // minRightSideBearing (unused)
    cacheU16 (hhea, FU (font->maxWidth)); // xMaxExtent
    cacheU16 (hhea, 1); // caretSlopeRise
    cacheU16 (hhea, 0); // caretSlopeRun
    cacheU16 (hhea, 0); // caretOffset
    cacheU16 (hhea, 0); // reserved
    cacheU16 (hhea, 0); // reserved
    cacheU16 (hhea, 0); // reserved
    cacheU16 (hhea, 0); // reserved
    cacheU16 (hhea, 0); // metricDataFormat
    cacheU16 (hhea, font->glyphCount); // numberOfHMetrics
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillHmtxTable()

void fillHmtxTable

(

Font *

font

)

Fill an "hmtx" font table.

The "hmtx" table contains horizontal metrics information.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 2087 of file hex2otf.c.

{
    Buffer *hmtx = newBuffer (4 * font->glyphCount);
    addTable (font, "hmtx", hmtx);
    const Glyph *const glyphs = getBufferHead (font->glyphs);
    const Glyph *const glyphsEnd = getBufferTail (font->glyphs);
    for (const Glyph *glyph = glyphs; glyph < glyphsEnd; glyph++)
    {
        int_fast16_t aw = glyph->combining ? 0 : PW (glyph->byteCount);
        cacheU16 (hmtx, FU (aw)); // advanceWidth
        cacheU16 (hmtx, FU (glyph->lsb)); // lsb
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillMaxpTable()

void fillMaxpTable	(	Font *	font,
		bool	isCFF,
		uint_fast16_t	maxPoints,
		uint_fast16_t	maxContours
	)

Fill a "maxp" font table.

The "maxp" table contains maximum profile information, such as the memory required to contain the font.

Parameters

[in,out]	font	The Font struct to which to add the table.
[in]	isCFF	true if a CFF font is included, false otherwise.
[in]	maxPoints	Maximum points in a non-composite glyph.
[in]	maxContours	Maximum contours in a non-composite glyph.

Definition at line 1954 of file hex2otf.c.

{
    Buffer *maxp = newBuffer (32);
    addTable (font, "maxp", maxp);
    cacheU32 (maxp, isCFF ? 0x00005000 : 0x00010000); // version
    cacheU16 (maxp, font->glyphCount); // numGlyphs
    if (isCFF)
        return;
    cacheU16 (maxp, maxPoints); // maxPoints
    cacheU16 (maxp, maxContours); // maxContours
    cacheU16 (maxp, 0); // maxCompositePoints
    cacheU16 (maxp, 0); // maxCompositeContours
    cacheU16 (maxp, 0); // maxZones
    cacheU16 (maxp, 0); // maxTwilightPoints
    cacheU16 (maxp, 0); // maxStorage
    cacheU16 (maxp, 0); // maxFunctionDefs
    cacheU16 (maxp, 0); // maxInstructionDefs
    cacheU16 (maxp, 0); // maxStackElements
    cacheU16 (maxp, 0); // maxSizeOfInstructions
    cacheU16 (maxp, 0); // maxComponentElements
    cacheU16 (maxp, 0); // maxComponentDepth
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillNameTable()

void fillNameTable	(	Font *	font,
		NameStrings	nameStrings
	)

Fill a "name" font table.

The "name" table contains name information, for example for Name IDs.

Parameters

[in,out]	font	The Font struct to which to add the table.
[in]	names	List of NameStrings.

Definition at line 2366 of file hex2otf.c.

{
    Buffer *name = newBuffer (2048);
    addTable (font, "name", name);
    size_t nameStringCount = 0;
    for (size_t i = 0; i < MAX_NAME_IDS; i++)
        nameStringCount += !!nameStrings[i];
    cacheU16 (name, 0); // version
    cacheU16 (name, nameStringCount); // count
    cacheU16 (name, 2 * 3 + 12 * nameStringCount); // storageOffset
    Buffer *stringData = newBuffer (1024);
    // nameRecord[]
    for (size_t i = 0; i < MAX_NAME_IDS; i++)
    {
        if (!nameStrings[i])
            continue;
        size_t offset = countBufferedBytes (stringData);
        cacheStringAsUTF16BE (stringData, nameStrings[i]);
        size_t length = countBufferedBytes (stringData) - offset;
        if (offset > U16MAX || length > U16MAX)
            fail ("Name strings are too long.");
        // Platform ID 0 (Unicode) is not well supported.
        // ID 3 (Windows) seems to be the best for compatibility.
        cacheU16 (name, 3); // platformID = Windows
        cacheU16 (name, 1); // encodingID = Unicode BMP
        cacheU16 (name, 0x0409); // languageID = en-US
        cacheU16 (name, i); // nameID
        cacheU16 (name, length); // length
        cacheU16 (name, offset); // stringOffset
    }
    cacheBuffer (name, stringData);
    freeBuffer (stringData);
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillOS2Table()

void fillOS2Table

(

Font *

font

)

Fill an "OS/2" font table.

The "OS/2" table contains OS/2 and Windows font metrics information.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 1986 of file hex2otf.c.

{
    Buffer *os2 = newBuffer (100);
    addTable (font, "OS/2", os2);
    cacheU16 (os2, 5); // version
    // HACK: Average glyph width is not actually calculated.
    cacheU16 (os2, FU (font->maxWidth)); // xAvgCharWidth
    cacheU16 (os2, 400); // usWeightClass = Normal
    cacheU16 (os2, 5); // usWidthClass = Medium
    const uint_fast16_t typeFlags =
        + B0 (0) // reserved
        // usage permissions, one of:
            // Default: Installable embedding
            + B0 (1) // Restricted License embedding
            + B0 (2) // Preview & Print embedding
            + B0 (3) // Editable embedding
        //    4-7   reserved
        + B0 (8) // no subsetting
        + B0 (9) // bitmap embedding only
        //    10-15 reserved
    ;
    cacheU16 (os2, typeFlags); // fsType
    cacheU16 (os2, FU (5)); // ySubscriptXSize
    cacheU16 (os2, FU (7)); // ySubscriptYSize
    cacheU16 (os2, FU (0)); // ySubscriptXOffset
    cacheU16 (os2, FU (1)); // ySubscriptYOffset
    cacheU16 (os2, FU (5)); // ySuperscriptXSize
    cacheU16 (os2, FU (7)); // ySuperscriptYSize
    cacheU16 (os2, FU (0)); // ySuperscriptXOffset
    cacheU16 (os2, FU (4)); // ySuperscriptYOffset
    cacheU16 (os2, FU (1)); // yStrikeoutSize
    cacheU16 (os2, FU (5)); // yStrikeoutPosition
    cacheU16 (os2, 0x080a); // sFamilyClass = Sans Serif, Matrix
    const byte panose[] =
    {
        2, // Family Kind = Latin Text
        11, // Serif Style = Normal Sans
        4, // Weight = Thin
        // Windows would render all glyphs to the same width,
        // if 'Proportion' is set to 'Monospaced' (as Unifont should be).
        // 'Condensed' is the best alternative according to metrics.
        6, // Proportion = Condensed
        2, // Contrast = None
        2, // Stroke = No Variation
        2, // Arm Style = Straight Arms
        8, // Letterform = Normal/Square
        2, // Midline = Standard/Trimmed
        4, // X-height = Constant/Large
    };
    cacheBytes (os2, panose, sizeof panose); // panose
    // HACK: All defined Unicode ranges are marked functional for convenience.
    cacheU32 (os2, 0xffffffff); // ulUnicodeRange1
    cacheU32 (os2, 0xffffffff); // ulUnicodeRange2
    cacheU32 (os2, 0xffffffff); // ulUnicodeRange3
    cacheU32 (os2, 0x0effffff); // ulUnicodeRange4
    cacheBytes (os2, "GNU ", 4); // achVendID
    // fsSelection (must agree with 'macStyle' in 'head' table)
    const uint_fast16_t selection =
        + B0 (0) // italic
        + B0 (1) // underscored
        + B0 (2) // negative
        + B0 (3) // outlined
        + B0 (4) // strikeout
        + B0 (5) // bold
        + B1 (6) // regular
        + B1 (7) // use sTypo* metrics in this table
        + B1 (8) // font name conforms to WWS model
        + B0 (9) // oblique
        //    10-15 reserved
    ;
    cacheU16 (os2, selection);
    const Glyph *glyphs = getBufferHead (font->glyphs);
    uint_fast32_t first = glyphs[1].codePoint;
    uint_fast32_t last = glyphs[font->glyphCount - 1].codePoint;
    cacheU16 (os2, first < U16MAX ? first : U16MAX); // usFirstCharIndex
    cacheU16 (os2, last  < U16MAX ? last  : U16MAX); // usLastCharIndex
    cacheU16 (os2, FU (ASCENDER)); // sTypoAscender
    cacheU16 (os2, FU (-DESCENDER)); // sTypoDescender
    cacheU16 (os2, FU (0)); // sTypoLineGap
    cacheU16 (os2, FU (ASCENDER)); // usWinAscent
    cacheU16 (os2, FU (DESCENDER)); // usWinDescent
    // HACK: All reasonable code pages are marked functional for convenience.
    cacheU32 (os2, 0x603f01ff); // ulCodePageRange1
    cacheU32 (os2, 0xffff0000); // ulCodePageRange2
    cacheU16 (os2, FU (8)); // sxHeight
    cacheU16 (os2, FU (10)); // sCapHeight
    cacheU16 (os2, 0); // usDefaultChar
    cacheU16 (os2, 0x20); // usBreakChar
    cacheU16 (os2, 0); // usMaxContext
    cacheU16 (os2, 0); // usLowerOpticalPointSize
    cacheU16 (os2, 0xffff); // usUpperOpticalPointSize
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillPostTable()

void fillPostTable

(

Font *

font

)

Fill a "post" font table.

The "post" table contains information for PostScript printers.

Parameters

[in,out]

font

The Font struct to which to add the table.

Definition at line 2218 of file hex2otf.c.

{
    Buffer *post = newBuffer (32);
    addTable (font, "post", post);
    cacheU32 (post, 0x00030000); // version = 3.0
    cacheU32 (post, 0); // italicAngle
    cacheU16 (post, 0); // underlinePosition
    cacheU16 (post, 1); // underlineThickness
    cacheU32 (post, 1); // isFixedPitch
    cacheU32 (post, 0); // minMemType42
    cacheU32 (post, 0); // maxMemType42
    cacheU32 (post, 0); // minMemType1
    cacheU32 (post, 0); // maxMemType1
}

Here is the call graph for this function:

Here is the caller graph for this function:

fillTrueType()

void fillTrueType	(	Font *	font,
		enum LocaFormat *	format,
		uint_fast16_t *	maxPoints,
		uint_fast16_t *	maxContours
	)

Add a TrueType table to a font.

Parameters

[in,out]	font	Pointer to a Font struct to contain the TrueType table.
[in]	format	The TrueType "loca" table format, Offset16 or Offset32.
[in]	names	List of NameStrings.

Definition at line 1597 of file hex2otf.c.

{
    Buffer *glyf = newBuffer (65536);
    addTable (font, "glyf", glyf);
    Buffer *loca = newBuffer (4 * (font->glyphCount + 1));
    addTable (font, "loca", loca);
    *format = LOCA_OFFSET32;
    Buffer *endPoints = newBuffer (256);
    Buffer *flags = newBuffer (256);
    Buffer *xs = newBuffer (256);
    Buffer *ys = newBuffer (256);
    Buffer *outline = newBuffer (1024);
    Glyph *const glyphs = getBufferHead (font->glyphs);
    const Glyph *const glyphsEnd = getBufferTail (font->glyphs);
    for (Glyph *glyph = glyphs; glyph < glyphsEnd; glyph++)
    {
        cacheU32 (loca, countBufferedBytes (glyf));
        pixels_t rx = -glyph->pos;
        pixels_t ry = DESCENDER;
        pixels_t xMin = GLYPH_MAX_WIDTH, xMax = 0;
        pixels_t yMin = ASCENDER, yMax = -DESCENDER;
        resetBuffer (endPoints);
        resetBuffer (flags);
        resetBuffer (xs);
        resetBuffer (ys);
        resetBuffer (outline);
        buildOutline (outline, glyph->bitmap, glyph->byteCount, FILL_RIGHT);
        uint_fast32_t pointCount = 0, contourCount = 0;
        for (const pixels_t *p = getBufferHead (outline),
             *const end = getBufferTail (outline); p < end;)
        {
            const enum ContourOp op = *p++;
            if (op == OP_CLOSE)
            {
                contourCount++;
                assert (contourCount <= U16MAX);
                cacheU16 (endPoints, pointCount - 1);
                continue;
            }
            assert (op == OP_POINT);
            pointCount++;
            assert (pointCount <= U16MAX);
            const pixels_t x = *p++, y = *p++;
            uint_fast8_t pointFlags =
                + B1 (0) // point is on curve
                + BX (1, x != rx) // x coordinate is 1 byte instead of 2
                + BX (2, y != ry) // y coordinate is 1 byte instead of 2
                + B0 (3) // repeat
                + BX (4, x >= rx) // when x is 1 byte: x is positive;
                                  // when x is 2 bytes: x unchanged and omitted
                + BX (5, y >= ry) // when y is 1 byte: y is positive;
                                  // when y is 2 bytes: y unchanged and omitted
                + B1 (6) // contours may overlap
                + B0 (7) // reserved
            ;
            cacheU8 (flags, pointFlags);
            if (x != rx)
                cacheU8 (xs, FU (x > rx ? x - rx : rx - x));
            if (y != ry)
                cacheU8 (ys, FU (y > ry ? y - ry : ry - y));
            if (x < xMin) xMin = x;
            if (y < yMin) yMin = y;
            if (x > xMax) xMax = x;
            if (y > yMax) yMax = y;
            rx = x;
            ry = y;
        }
        if (contourCount == 0)
            continue; // blank glyph is indicated by the 'loca' table
        glyph->lsb = glyph->pos + xMin;
        cacheU16 (glyf, contourCount); // numberOfContours
        cacheU16 (glyf, FU (glyph->pos + xMin)); // xMin
        cacheU16 (glyf, FU (yMin)); // yMin
        cacheU16 (glyf, FU (glyph->pos + xMax)); // xMax
        cacheU16 (glyf, FU (yMax)); // yMax
        cacheBuffer (glyf, endPoints); // endPtsOfContours[]
        cacheU16 (glyf, 0); // instructionLength
        cacheBuffer (glyf, flags); // flags[]
        cacheBuffer (glyf, xs); // xCoordinates[]
        cacheBuffer (glyf, ys); // yCoordinates[]
        if (pointCount > *maxPoints)
            *maxPoints = pointCount;
        if (contourCount > *maxContours)
            *maxContours = contourCount;
    }
    cacheU32 (loca, countBufferedBytes (glyf));
    freeBuffer (endPoints);
    freeBuffer (flags);
    freeBuffer (xs);
    freeBuffer (ys);
    freeBuffer (outline);
}

Here is the call graph for this function:

Here is the caller graph for this function:

freeBuffer()

void freeBuffer

(

Buffer *

buf

)

Free the memory previously allocated for a buffer.

This function frees the memory allocated to an array of type Buffer *.

Parameters

[in]

buf

The pointer to an array of type Buffer *.

Definition at line 337 of file hex2otf.c.

{
    free (buf->begin);
    buf->capacity = 0;
}

Here is the caller graph for this function:

initBuffers()

void initBuffers

(

size_t

count

)

Initialize an array of buffer pointers to all zeroes.

This function initializes the "allBuffers" array of buffer pointers to all zeroes.

Parameters

[in]

count

The number of buffer array pointers to allocate.

Definition at line 152 of file hex2otf.c.

{
    assert (count > 0);
    assert (bufferCount == 0); // uninitialized
    allBuffers = calloc (count, sizeof *allBuffers);
    if (!allBuffers)
        fail ("Failed to initialize buffers.");
    bufferCount = count;
    nextBufferIndex = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char *	argv[]
	)

The main function.

Parameters

[in]	argc	The number of command-line arguments.
[in]	argv	The array of command-line arguments.

Returns

EXIT_FAILURE upon fatal error, EXIT_SUCCESS otherwise.

Definition at line 2603 of file hex2otf.c.

{
    initBuffers (16);
    atexit (cleanBuffers);
    Options opt = parseOptions (argv);
    Font font;
    font.tables = newBuffer (sizeof (Table) * 16);
    font.glyphs = newBuffer (sizeof (Glyph) * MAX_GLYPHS);
    readGlyphs (&font, opt.hex);
    sortGlyphs (&font);
    enum LocaFormat loca = LOCA_OFFSET16;
    uint_fast16_t maxPoints = 0, maxContours = 0;
    pixels_t xMin = 0;
    if (opt.pos)
        positionGlyphs (&font, opt.pos, &xMin);
    if (opt.gpos)
        fillGposTable (&font);
    if (opt.gsub)
        fillGsubTable (&font);
    if (opt.cff)
        fillCFF (&font, opt.cff, opt.nameStrings);
    if (opt.truetype)
        fillTrueType (&font, &loca, &maxPoints, &maxContours);
    if (opt.blankOutline)
        fillBlankOutline (&font);
    if (opt.bitmap)
        fillBitmap (&font);
    fillHeadTable (&font, loca, xMin);
    fillHheaTable (&font, xMin);
    fillMaxpTable (&font, opt.cff, maxPoints, maxContours);
    fillOS2Table (&font);
    fillNameTable (&font, opt.nameStrings);
    fillHmtxTable (&font);
    fillCmapTable (&font);
    fillPostTable (&font);
    organizeTables (&font, opt.cff);
    writeFont (&font, opt.cff, opt.out);
    return EXIT_SUCCESS;
}

Here is the call graph for this function:

matchToken()

const char * matchToken	(	const char *	operand,
		const char *	key,
		char	delimiter
	)

Match a command line option with its key for enabling.

Parameters

[in]	operand	A pointer to the specified operand.
[in]	key	Pointer to the option structure.
[in]	delimeter	The delimiter to end searching.

Returns

Pointer to the first character of the desired option.

Definition at line 2470 of file hex2otf.c.

{
    while (*key)
        if (*operand++ != *key++)
            return NULL;
    if (!*operand || *operand++ == delimiter)
        return operand;
    return NULL;
}

Here is the caller graph for this function:

newBuffer()

Buffer * newBuffer

(

size_t

initialCapacity

)

Create a new buffer.

This function creates a new buffer array of type Buffer, with an initial size of initialCapacity elements.

Parameters

[in]

initialCapacity

The initial number of elements in the buffer.

Definition at line 188 of file hex2otf.c.

{
    assert (initialCapacity > 0);
    Buffer *buf = NULL;
    size_t sentinel = nextBufferIndex;
    do
    {
        if (nextBufferIndex == bufferCount)
            nextBufferIndex = 0;
        if (allBuffers[nextBufferIndex].capacity == 0)
        {
            buf = &allBuffers[nextBufferIndex++];
            break;
        }
    } while (++nextBufferIndex != sentinel);
    if (!buf) // no existing buffer available
    {
        size_t newSize = sizeof (Buffer) * bufferCount * 2;
        void *extended = realloc (allBuffers, newSize);
        if (!extended)
            fail ("Failed to create new buffers.");
        allBuffers = extended;
        memset (allBuffers + bufferCount, 0, sizeof (Buffer) * bufferCount);
        buf = &allBuffers[bufferCount];
        nextBufferIndex = bufferCount + 1;
        bufferCount *= 2;
    }
    buf->begin = malloc (initialCapacity);
    if (!buf->begin)
        fail ("Failed to allocate %zu bytes of memory.", initialCapacity);
    buf->capacity = initialCapacity;
    buf->next = buf->begin;
    buf->end = buf->begin + initialCapacity;
    return buf;
}

Here is the call graph for this function:

Here is the caller graph for this function:

organizeTables()

void organizeTables	(	Font *	font,
		bool	isCFF
	)

Sort tables according to OpenType recommendations.

The various tables in a font are sorted in an order recommended for TrueType font files.

Parameters

[in,out]	font	The font in which to sort tables.
[in]	isCFF	True iff Compact Font Format (CFF) is being used.

Definition at line 711 of file hex2otf.c.

{
    const char *const cffOrder[] = {"head","hhea","maxp","OS/2","name",
        "cmap","post","CFF ",NULL};
    const char *const truetypeOrder[] = {"head","hhea","maxp","OS/2",
        "hmtx","LTSH","VDMX","hdmx","cmap","fpgm","prep","cvt ","loca",
        "glyf","kern","name","post","gasp","PCLT","DSIG",NULL};
    const char *const *const order = isCFF ? cffOrder : truetypeOrder;
    Table *unordered = getBufferHead (font->tables);
    const Table *const tablesEnd = getBufferTail (font->tables);
    for (const char *const *p = order; *p; p++)
    {
        uint_fast32_t tag = tagAsU32 (*p);
        for (Table *t = unordered; t < tablesEnd; t++)
        {
            if (t->tag != tag)
                continue;
            if (t != unordered)
            {
                Table temp = *unordered;
                *unordered = *t;
                *t = temp;
            }
            unordered++;
            break;
        }
    }
}

Here is the caller graph for this function:

parseOptions()

Options parseOptions

(

char *const

argv[const ]

)

Parse command line options.

Option         Data Type      Description
------         ---------      -----------
truetype       bool           Generate TrueType outlines
blankOutline   bool           Generate blank outlines
bitmap         bool           Generate embedded bitmap
gpos           bool           Generate a dummy GPOS table
gsub           bool           Generate a dummy GSUB table
cff            int            Generate CFF 1 or CFF 2 outlines
hex            const char *   Name of Unifont .hex file
pos            const char *   Name of Unifont combining data file
out            const char *   Name of output font file
nameStrings    NameStrings    Array of TrueType font Name IDs

Parameters

[in]

argv

Pointer to array of command line options.

Returns

Data structure to hold requested command line options.

Definition at line 2500 of file hex2otf.c.

{
    Options opt = {0}; // all options default to 0, false and NULL
    const char *format = NULL;
    struct StringArg
    {
        const char *const key;
        const char **const value;
    } strArgs[] =
    {
        {"hex", &opt.hex},
        {"pos", &opt.pos},
        {"out", &opt.out},
        {"format", &format},
        {NULL, NULL} // sentinel
    };
    for (char *const *argp = argv + 1; *argp; argp++)
    {
        const char *const arg = *argp;
        struct StringArg *p;
        const char *value = NULL;
        if (strcmp (arg, "--help") == 0)
            printHelp ();
        if (strcmp (arg, "--version") == 0)
            printVersion ();
        for (p = strArgs; p->key; p++)
            if ((value = matchToken (arg, p->key, '=')))
                break;
        if (p->key)
        {
            if (!*value)
                fail ("Empty argument: '%s'.", p->key);
            if (*p->value)
                fail ("Duplicate argument: '%s'.", p->key);
            *p->value = value;
        }
        else // shall be a name string
        {
            char *endptr;
            unsigned long id = strtoul (arg, &endptr, 10);
            if (endptr == arg || id >= MAX_NAME_IDS || *endptr != '=')
                fail ("Invalid argument: '%s'.", arg);
            endptr++; // skip '='
            if (opt.nameStrings[id])
                fail ("Duplicate name ID: %lu.", id);
            opt.nameStrings[id] = endptr;
        }
    }
    if (!opt.hex)
        fail ("Hex file is not specified.");
    if (opt.pos && opt.pos[0] == '\0')
        opt.pos = NULL; // Position file is optional. Empty path means none.
    if (!opt.out)
        fail ("Output file is not specified.");
    if (!format)
        fail ("Format is not specified.");
    for (const NamePair *p = defaultNames; p->str; p++)
        if (!opt.nameStrings[p->id])
            opt.nameStrings[p->id] = p->str;
    bool cff = false, cff2 = false;
    struct Symbol
    {
        const char *const key;
        bool *const found;
    } symbols[] =
    {
        {"cff", &cff},
        {"cff2", &cff2},
        {"truetype", &opt.truetype},
        {"blank", &opt.blankOutline},
        {"bitmap", &opt.bitmap},
        {"gpos", &opt.gpos},
        {"gsub", &opt.gsub},
        {NULL, NULL} // sentinel
    };
    while (*format)
    {
        const struct Symbol *p;
        const char *next = NULL;
        for (p = symbols; p->key; p++)
            if ((next = matchToken (format, p->key, ',')))
                break;
        if (!p->key)
            fail ("Invalid format.");
        *p->found = true;
        format = next;
    }
    if (cff + cff2 + opt.truetype + opt.blankOutline > 1)
        fail ("At most one outline format can be accepted.");
    if (!(cff || cff2 || opt.truetype || opt.bitmap))
        fail ("Invalid format.");
    opt.cff = cff + cff2 * 2;
    return opt;
}

Here is the call graph for this function:

Here is the caller graph for this function:

positionGlyphs()

void positionGlyphs	(	Font *	font,
		const char *	fileName,
		pixels_t *	xMin
	)

Position a glyph within a 16-by-16 pixel bounding box.

Position a glyph within the 16-by-16 pixel drawing area and note whether or not the glyph is a combining character.

N.B.: Glyphs must be sorted by code point before calling this function.

Parameters

[in,out]	font	Font data structure pointer to store glyphs.
[in]	fileName	Name of glyph file to read.
[in]	xMin	Minimum x-axis value (for left side bearing).

Definition at line 1061 of file hex2otf.c.

{
    *xMin = 0;
    FILE *file = fopen (fileName, "r");
    if (!file)
        fail ("Failed to open file '%s'.", fileName);
    Glyph *glyphs = getBufferHead (font->glyphs);
    const Glyph *const endGlyph = glyphs + font->glyphCount;
    Glyph *nextGlyph = &glyphs[1]; // predict and avoid search
    for (;;)
    {
        uint_fast32_t codePoint;
        if (readCodePoint (&codePoint, fileName, file))
            break;
        Glyph *glyph = nextGlyph;
        if (glyph == endGlyph || glyph->codePoint != codePoint)
        {
            // Prediction failed. Search.
            const Glyph key = { .codePoint = codePoint };
            glyph = bsearch (&key, glyphs + 1, font->glyphCount - 1,
                sizeof key, byCodePoint);
            if (!glyph)
                fail ("Glyph "PRI_CP" is positioned but not defined.",
                    codePoint);
        }
        nextGlyph = glyph + 1;
        char s[8];
        if (!fgets (s, sizeof s, file))
            fail ("%s: Read error.", fileName);
        char *end;
        const long value = strtol (s, &end, 10);
        if (*end != '\n' && *end != '\0')
            fail ("Position of glyph "PRI_CP" is invalid.", codePoint);
        // Currently no glyph is moved to the right,
        // so positive position is considered out of range.
        // If this limit is to be lifted,
        // 'xMax' of bounding box in 'head' table shall also be updated.
        if (value < -GLYPH_MAX_WIDTH || value > 0)
            fail ("Position of glyph "PRI_CP" is out of range.", codePoint);
        glyph->combining = true;
        glyph->pos = value;
        glyph->lsb = value; // updated during outline generation
        if (value < *xMin)
            *xMin = value;
    }
    fclose (file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

prepareOffsets()

void prepareOffsets

(

size_t *

sizes

)

Prepare 32-bit glyph offsets in a font table.

Parameters

[in]

sizes

Array of glyph sizes, for offset calculations.

Definition at line 1275 of file hex2otf.c.

{
    size_t *p = sizes;
    for (size_t *i = sizes + 1; *i; i++)
        *i += *p++;
    if (*p > 2147483647U) // offset not representable
        fail ("CFF table is too large.");
}

Here is the call graph for this function:

Here is the caller graph for this function:

prepareStringIndex()

Buffer * prepareStringIndex

(

const NameStrings

names

)

Prepare a font name string index.

Parameters

[in]

names

List of name strings.

Returns

Pointer to a Buffer struct containing the string names.

Get the number of elements in array char *strings[].

Definition at line 1291 of file hex2otf.c.

{
    Buffer *buf = newBuffer (256);
    assert (names[6]);
    const char *strings[] = {"Adobe", "Identity", names[6]};
    /// Get the number of elements in array char *strings[].
    #define stringCount (sizeof strings / sizeof *strings)
    static_assert (stringCount <= U16MAX, "too many strings");
    size_t offset = 1;
    size_t lengths[stringCount];
    for (size_t i = 0; i < stringCount; i++)
    {
        assert (strings[i]);
        lengths[i] = strlen (strings[i]);
        offset += lengths[i];
    }
    int offsetSize = 1 + (offset > 0xff)
                       + (offset > 0xffff)
                       + (offset > 0xffffff);
    cacheU16 (buf, stringCount); // count
    cacheU8 (buf, offsetSize); // offSize
    cacheU (buf, offset = 1, offsetSize); // offset[0]
    for (size_t i = 0; i < stringCount; i++)
        cacheU (buf, offset += lengths[i], offsetSize); // offset[i + 1]
    for (size_t i = 0; i < stringCount; i++)
        cacheBytes (buf, strings[i], lengths[i]);
    #undef stringCount
    return buf;
}

Here is the call graph for this function:

Here is the caller graph for this function:

printHelp()

void printHelp

(

)

Print help message to stdout and then exit.

Print help message if invoked with the "--help" option, and then exit successfully.

Definition at line 2426 of file hex2otf.c.

             {
    printf ("Synopsis: hex2otf <options>:\n\n");
    printf ("    hex=<filename>        Specify Unifont .hex input file.\n");
    printf ("    pos=<filename>        Specify combining file. (Optional)\n");
    printf ("    out=<filename>        Specify output font file.\n");
    printf ("    format=<f1>,<f2>,...  Specify font format(s); values:\n");
    printf ("                             cff\n");
    printf ("                             cff2\n");
    printf ("                             truetype\n");
    printf ("                             blank\n");
    printf ("                             bitmap\n");
    printf ("                             gpos\n");
    printf ("                             gsub\n");
    printf ("\nExample:\n\n");
    printf ("    hex2otf hex=Myfont.hex out=Myfont.otf format=cff\n\n");
    printf ("For more information, consult the hex2otf(1) man page.\n\n");

    exit (EXIT_SUCCESS);
}

Here is the caller graph for this function:

printVersion()

void printVersion

(

)

Print program version string on stdout.

Print program version if invoked with the "--version" option, and then exit successfully.

Definition at line 2407 of file hex2otf.c.

                {
    printf ("hex2otf (GNU Unifont) %s\n", VERSION);
    printf ("Copyright \u00A9 2022 \u4F55\u5FD7\u7FD4 (He Zhixiang)\n");
    printf ("License GPLv2+: GNU GPL version 2 or later\n");
    printf ("<https://gnu.org/licenses/gpl.html>\n");
    printf ("This is free software: you are free to change and\n");
    printf ("redistribute it.  There is NO WARRANTY, to the extent\n");
    printf ("permitted by law.\n");

    exit (EXIT_SUCCESS);
}

Here is the caller graph for this function:

readCodePoint()

bool readCodePoint	(	uint_fast32_t *	codePoint,
		const char *	fileName,
		FILE *	file
	)

Read up to 6 hexadecimal digits and a colon from file.

This function reads up to 6 hexadecimal digits followed by a colon from a file.

If the end of the file is reached, the function returns true. The file name is provided to include in an error message if the end of file was reached unexpectedly.

Parameters

[out]	codePoint	The Unicode code point.
[in]	fileName	The name of the input file.
[in]	file	Pointer to the input file stream.

Returns

true if at end of file, false otherwise.

Definition at line 919 of file hex2otf.c.

{
    *codePoint = 0;
    uint_fast8_t digitCount = 0;
    for (;;)
    {
        int c = getc (file);
        if (isxdigit (c) && ++digitCount <= 6)
        {
            *codePoint = (*codePoint << 4) | nibbleValue (c);
            continue;
        }
        if (c == ':' && digitCount > 0)
            return false;
        if (c == EOF)
        {
            if (digitCount == 0)
                return true;
            if (feof (file))
                fail ("%s: Unexpected end of file.", fileName);
            else
                fail ("%s: Read error.", fileName);
        }
        fail ("%s: Unexpected character: %#.2x.", fileName, (unsigned)c);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

readGlyphs()

void readGlyphs	(	Font *	font,
		const char *	fileName
	)

Read glyph definitions from a Unifont .hex format file.

This function reads in the glyph bitmaps contained in a Unifont .hex format file. These input files contain one glyph bitmap per line. Each line is of the form

<hexadecimal code point> ':' <hexadecimal bitmap sequence>

The code point field typically consists of 4 hexadecimal digits for a code point in Unicode Plane 0, and 6 hexadecimal digits for code points above Plane 0. The hexadecimal bitmap sequence is 32 hexadecimal digits long for a glyph that is 8 pixels wide by 16 pixels high, and 64 hexadecimal digits long for a glyph that is 16 pixels wide by 16 pixels high.

Parameters

[in,out]	font	The font data structure to update with new glyphs.
[in]	fileName	The name of the Unifont .hex format input file.

Definition at line 966 of file hex2otf.c.

{
    FILE *file = fopen (fileName, "r");
    if (!file)
        fail ("Failed to open file '%s'.", fileName);
    uint_fast32_t glyphCount = 1; // for glyph 0
    uint_fast8_t maxByteCount = 0;
    { // Hard code the .notdef glyph.
        const byte bitmap[] = "\0\0\0~fZZzvv~vv~\0\0"; // same as U+FFFD
        const size_t byteCount = sizeof bitmap - 1;
        assert (byteCount <= GLYPH_MAX_BYTE_COUNT);
        assert (byteCount % GLYPH_HEIGHT == 0);
        Glyph *notdef = getBufferSlot (font->glyphs, sizeof (Glyph));
        memcpy (notdef->bitmap, bitmap, byteCount);
        notdef->byteCount = maxByteCount = byteCount;
        notdef->combining = false;
        notdef->pos = 0;
        notdef->lsb = 0;
    }
    for (;;)
    {
        uint_fast32_t codePoint;
        if (readCodePoint (&codePoint, fileName, file))
            break;
        if (++glyphCount > MAX_GLYPHS)
            fail ("OpenType does not support more than %lu glyphs.",
                MAX_GLYPHS);
        Glyph *glyph = getBufferSlot (font->glyphs, sizeof (Glyph));
        glyph->codePoint = codePoint;
        glyph->byteCount = 0;
        glyph->combining = false;
        glyph->pos = 0;
        glyph->lsb = 0;
        for (byte *p = glyph->bitmap;; p++)
        {
            int h, l;
            if (isxdigit (h = getc (file)) && isxdigit (l = getc (file)))
            {
                if (++glyph->byteCount > GLYPH_MAX_BYTE_COUNT)
                    fail ("Hex stream of "PRI_CP" is too long.", codePoint);
                *p = nibbleValue (h) << 4 | nibbleValue (l);
            }
            else if (h == '\n' || (h == EOF && feof (file)))
                break;
            else if (ferror (file))
                fail ("%s: Read error.", fileName);
            else
                fail ("Hex stream of "PRI_CP" is invalid.", codePoint);
        }
        if (glyph->byteCount % GLYPH_HEIGHT != 0)
            fail ("Hex length of "PRI_CP" is indivisible by glyph height %d.",
                codePoint, GLYPH_HEIGHT);
        if (glyph->byteCount > maxByteCount)
            maxByteCount = glyph->byteCount;
    }
    if (glyphCount == 1)
        fail ("No glyph is specified.");
    font->glyphCount = glyphCount;
    font->maxWidth = PW (maxByteCount);
    fclose (file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sortGlyphs()

void sortGlyphs

(

Font *

font

)

Sort the glyphs in a font by Unicode code point.

This function reads in an array of glyphs and sorts them by Unicode code point. If a duplicate code point is encountered, that will result in a fatal error with an error message to stderr.

Parameters

[in,out]

font

Pointer to a Font structure with glyphs to sort.

Definition at line 1119 of file hex2otf.c.

{
    Glyph *glyphs = getBufferHead (font->glyphs);
    const Glyph *const glyphsEnd = getBufferTail (font->glyphs);
    glyphs++; // glyph 0 does not need sorting
    qsort (glyphs, glyphsEnd - glyphs, sizeof *glyphs, byCodePoint);
    for (const Glyph *glyph = glyphs; glyph < glyphsEnd - 1; glyph++)
    {
        if (glyph[0].codePoint == glyph[1].codePoint)
            fail ("Duplicate code point: "PRI_CP".", glyph[0].codePoint);
        assert (glyph[0].codePoint < glyph[1].codePoint);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

writeBytes()

void writeBytes	(	const byte	bytes[],
		size_t	count,
		FILE *	file
	)

Write an array of bytes to an output file.

Parameters

[in]	bytes	An array of unsigned bytes to write.
[in]	file	The file pointer for writing, of type FILE *.

Definition at line 538 of file hex2otf.c.

{
    if (fwrite (bytes, count, 1, file) != 1 && count != 0)
        fail ("Failed to write %zu bytes to output file.", count);
}

Here is the call graph for this function:

Here is the caller graph for this function:

writeFont()

void writeFont	(	Font *	font,
		bool	isCFF,
		const char *	fileName
	)

Write OpenType font to output file.

This function writes the constructed OpenType font to the output file named "filename".

Parameters

[in]	font	Pointer to the font, of type Font *.
[in]	isCFF	Boolean indicating whether the font has CFF data.
[in]	filename	The name of the font file to create.

Add a byte shifted by 24, 16, 8, or 0 bits.

Definition at line 786 of file hex2otf.c.

{
    FILE *file = fopen (fileName, "wb");
    if (!file)
        fail ("Failed to open file '%s'.", fileName);
    const Table *const tables = getBufferHead (font->tables);
    const Table *const tablesEnd = getBufferTail (font->tables);
    size_t tableCount = tablesEnd - tables;
    assert (0 < tableCount && tableCount <= U16MAX);
    size_t offset = 12 + 16 * tableCount;
    uint_fast32_t totalChecksum = 0;
    Buffer *tableRecords =
        newBuffer (sizeof (struct TableRecord) * tableCount);
    for (size_t i = 0; i < tableCount; i++)
    {
        struct TableRecord *record =
            getBufferSlot (tableRecords, sizeof *record);
        record->tag = tables[i].tag;
        size_t length = countBufferedBytes (tables[i].content);
        #if SIZE_MAX > U32MAX
            if (offset > U32MAX)
                fail ("Table offset exceeded 4 GiB.");
            if (length > U32MAX)
                fail ("Table size exceeded 4 GiB.");
        #endif
        record->length = length;
        record->checksum = 0;
        const byte *p = getBufferHead (tables[i].content);
        const byte *const end = getBufferTail (tables[i].content);

        /// Add a byte shifted by 24, 16, 8, or 0 bits.
        #define addByte(shift) \
            if (p == end) \
                break; \
            record->checksum += (uint_fast32_t)*p++ << (shift);

        for (;;)
        {
            addByte (24)
            addByte (16)
            addByte (8)
            addByte (0)
        }
        #undef addByte
        cacheZeros (tables[i].content, (~length + 1U) & 3U);
        record->offset = offset;
        offset += countBufferedBytes (tables[i].content);
        totalChecksum += record->checksum;
    }
    struct TableRecord *records = getBufferHead (tableRecords);
    qsort (records, tableCount, sizeof *records, byTableTag);
    // Offset Table
    uint_fast32_t sfntVersion = isCFF ? 0x4f54544f : 0x00010000;
    writeU32 (sfntVersion, file); // sfntVersion
    totalChecksum += sfntVersion;
    uint_fast16_t entrySelector = 0;
    for (size_t k = tableCount; k != 1; k >>= 1)
        entrySelector++;
    uint_fast16_t searchRange = 1 << (entrySelector + 4);
    uint_fast16_t rangeShift = (tableCount - (1 << entrySelector)) << 4;
    writeU16 (tableCount, file); // numTables
    writeU16 (searchRange, file); // searchRange
    writeU16 (entrySelector, file); // entrySelector
    writeU16 (rangeShift, file); // rangeShift
    totalChecksum += (uint_fast32_t)tableCount << 16;
    totalChecksum += searchRange;
    totalChecksum += (uint_fast32_t)entrySelector << 16;
    totalChecksum += rangeShift;
    // Table Records (always sorted by table tags)
    for (size_t i = 0; i < tableCount; i++)
    {
        // Table Record
        writeU32 (records[i].tag, file); // tableTag
        writeU32 (records[i].checksum, file); // checkSum
        writeU32 (records[i].offset, file); // offset
        writeU32 (records[i].length, file); // length
        totalChecksum += records[i].tag;
        totalChecksum += records[i].checksum;
        totalChecksum += records[i].offset;
        totalChecksum += records[i].length;
    }
    freeBuffer (tableRecords);
    for (const Table *table = tables; table < tablesEnd; table++)
    {
        if (table->tag == 0x68656164) // 'head' table
        {
            byte *begin = getBufferHead (table->content);
            byte *end = getBufferTail (table->content);
            writeBytes (begin, 8, file);
            writeU32 (0xb1b0afbaU - totalChecksum, file); // checksumAdjustment
            writeBytes (begin + 12, end - (begin + 12), file);
            continue;
        }
        writeBuffer (table->content, file);
    }
    fclose (file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

writeU16()

void writeU16	(	uint_fast16_t	value,
		FILE *	file
	)

Write an unsigned 16-bit value to an output file.

This function writes a 16-bit unsigned value in big-endian order to an output file specified with a file pointer.

Parameters

[in]	value	The 16-bit value to write.
[in]	file	The file pointer for writing, of type FILE *.

Definition at line 554 of file hex2otf.c.

{
    byte bytes[] =
    {
        (value >> 8) & 0xff,
        (value     ) & 0xff,
    };
    writeBytes (bytes, sizeof bytes, file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

writeU32()

void writeU32	(	uint_fast32_t	value,
		FILE *	file
	)

Write an unsigned 32-bit value to an output file.

This function writes a 32-bit unsigned value in big-endian order to an output file specified with a file pointer.

Parameters

[in]	value	The 32-bit value to write.
[in]	file	The file pointer for writing, of type FILE *.

Definition at line 574 of file hex2otf.c.

{
    byte bytes[] =
    {
        (value >> 24) & 0xff,
        (value >> 16) & 0xff,
        (value >>  8) & 0xff,
        (value      ) & 0xff,
    };
    writeBytes (bytes, sizeof bytes, file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

allBuffers

Buffer* allBuffers

Initial allocation of empty array of buffer pointers.

Definition at line 139 of file hex2otf.c.

bufferCount

size_t bufferCount

Number of buffers in a Buffer * array.

Definition at line 140 of file hex2otf.c.

nextBufferIndex

size_t nextBufferIndex

Index number to tail element of Buffer * array.

Definition at line 141 of file hex2otf.c.
